Zigbee Wireless Automation Window Operator
Nanjing IOT Sensor Technology Co.,Ltd
Region: China
Update: 2012/05/15
INQUIRY
Key Specifications

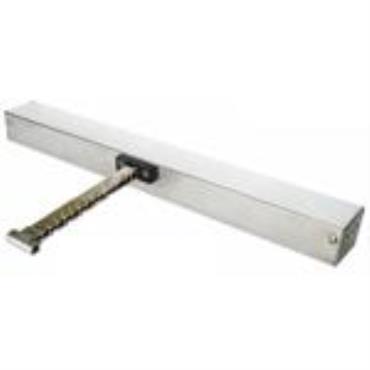

Zigbee wireless automation window operator
1.Used for opening the skylight / sash window / shutter / high window / vent window
2.The largest push-pull effort reach 1000 N
3.Can be applied in moist and dusty occasions
4.The best sealing technology
5.Easy installation and low voice
6.Simple in operation,it can be remotely controlled by mobile phone, iPad etc.
Technical Parameter
Power Supply AC220V, DC24V
Rated Power 50W
Pull-push Effort 650N, 800N, 1000N
Control Mode Zigbee
Running Speed 10mm/S
Route Specification 400mm600mm800mm1000mm
Route Safeguard Electronic overload mode
Operating Environment -2585°C
Working Life more than10 thousand times
Protection Level IP55
Terminal Route Electronic mode
Appearance Color Selectable
Main Part Dimension 160*46*106mm; Body length: (X00+160)mm
Shell Material Alufer, brighting silver
