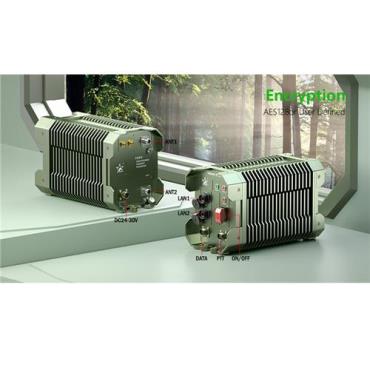

Military Anti Explosion IP MESH for Armored Vehicle SFGT-MS2020VMR

Self-healing is also an impressive feature of the rugged IP MESH radio. When one of the nodes loses the signal or out of working, the other nodes can re-manage and re-joint in seconds.

With maximum 25W*25W RF output, the robust IP MESH achieved long range over 30km LOS under two MESH nodes. Longer range can be realized with more nodes joint in as repeat function. Like other IP mesh radio family from SFGT, the robust MESH could self-form & manage star, random etc. MESH networking with other MESH nodes from manned vehicle, unmanned vehicle, vessel, soldier etc.. to support a wireless IP video and data seamless communication in a private and small area network.

It’s a latest and innovative design from SFGT, a powerful and rugged COFDM IP MESH. With it’s robust enclosure and special inside design, this IP MESH with strong shock-proof is typical for armored vehicle mounted application in very harsh environment, like high temperature, alpine zone, complex electromagnetic environment.

RF Features

Frequency Range：1.4GHz（customizable)

RF Power：Max 25W*25W（Tunable）

Modulation：COFDM LTE/FPGA (optional)

Constellation modulation：BPSK/QPSK/16QAM/64QAM（Adaptive）

RF bandwidth：1.4/3/5/10/20MHz

FEC：1/2，2/3，3/4，5/6（Optional）

Sensitivity：-96dBm@1.4MHz Transmission Rate： Peak 40MBPS@30MHZ

Transmission Distance：30~50KM（LOS）, 10~20km (NLOS)

Networking Capacity：32 /64/128 Nodes (customizable）

Electric Features

Working Voltage： DC28V

Working Current：3.5A(Typical Value)

Data Features

Video Input Format：Support IP Video Input

External Ports：RJ45, TTL, PTT

Control Function：Support Network Management

Encryption：AES128or User Defined

Built-in Module：Wi-Fi/Bluetooth/GPS/Beidou

Physical Features

Protection Grade： IP66

Working Temperature： -20℃ ~ +55℃

Storage Temperature： -50℃ ~ +70℃

Dimension： 326×205×170mm

Weight： 6kg
