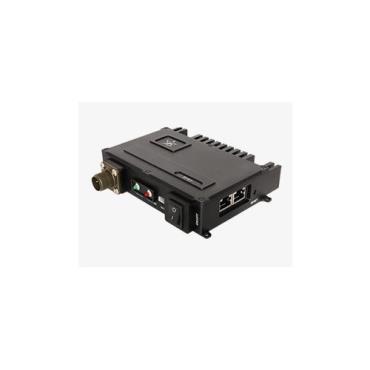

SFGT-HF0202UO is a broadband data transmission equipment. Support a variety of bandwidth allocation, this device supports IP communication function, a local wireless LAN can be built with this device. With two-way data transmission and light weight as its feature, it is very suitable for small uav telemetry and low delaying video acquisition.

Product Features

◆ Point-to-Point & Point-to-Multipoint &Multipoint-to-Multipoint modes

◆ Efficient channel coding

◆ Multi-hop ad hoc networking protocols

◆ Provide IP interface to realize interconnection and interworking with other IP devices

◆ Do not rely on base stations. Able to form a centerless wireless broadband network efficiently and quickly

◆ Real-time video & front end node working status monitoring

Product Specification

Working frequency：1.4G (Customizable)

Interface ：RS422/RJ45(Customizable)

Bandwidth：2/5/10/20/40MHz(Adjustable)

Transmission Distance ：25km

Sensitivity ：-95dBm

Nodes： Up to 16

Mode： Frequency hopping

Working temperature ：-20℃～+55℃

RF power ：0.5w-2w(adjustable)

Storage Temperature ：-40℃～+70℃

Power supply： DC11V-24V

Size： 131*103*29mm(Customizable)

Working current： 1.2A

Weight ：Appr 460g (Customizable)

compatible with view pro and gimbal camera

compatible with cuav and gimbal camera

compatible with yangda and gimbal camera

compatible with foxtech and gimbal camera
