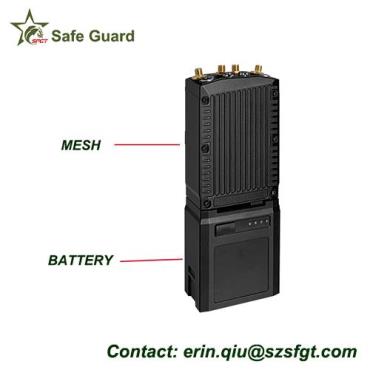

It’s a new designed tactical MESH radio specially for handheld quick deploy application. Handheld MESH provides video surveillance, voice communication, data transmission, and flexibility of IP in a private and secure network.

The handheld MESH was designed in easy operation. Each radio can be configured via simple web page, such as bandwidth, link adaptation, frequency, etc..

With it''''''''s self-managing, self-healing, safety stream, and portable size, the rugges mesh radio helps user operate more quickly, safely and systematically in teams reaction.

wireless mesh radio for security robot drone

All MESH in a group share a same frequency

It’s self-organization and self-healing

Support None-Line-of-Sigh signal transmission

User friendly operation

Each MESH has two antennas

Simple web page configuration

Fast & safe deployment

Transmission feature

Frequency;225MHz~1.5GHz (customized)

Transmitting power;100mW/1W

Modulation;COFDM MESH

Constellation;BPSK/QPSK/16QAM/64QAM

FEC;1/2, 2/3, 3/4, 5/6

Bandwidth;5/10MHz

Sensitivity;4Mbps~88dB@10MHz

Transfer rate;Peak 11Mbps@10MHz

Transmission distance;1~5km LOS

Mesh node network ability;Max 16 nodes

Power supply

Operation voltage;DC12V

Operation current;1A

Power consumption

≤9W@100mW TX power

≤15W@1W TX power

Signal feature

Video input;IP video input: 1080P IP camera

Audio input;MIC/PTT

Audio format;HEADSET

Encryption;AES128 or user-defined

Built-in modem;WIFI/Bluetooth/GPS

Physical feature

Protection grade;IP66

Operation temperature;-20°C ~ +55°C

Storage temperature;-50°C ~ +70°C

Weight;About 500g (without battery)

Dimension;180*74*40mm (100mW),215*70*40mm (1W)
