Safe Guard COFDM IP MESH Radio combines with COFDM modulation, high efficiency channel coded and MESH networking protocol that realized network integration of video, data, audio, and GPS data with seamless transmission. The self-forming, self healing nodes can be deployed quickly, simple to install and highly flexible. It is designed and built for military tactical teams like special force units, anti-terror units etc. Any Non-line of sight coverage can be extended by using nodes as repeaters. Suitable for mobile command vehicle, vehicle convoy or ship-to-ship communication, border surveillance, mining operations, remote oil and gas operations, mining operations etc.

Main feature

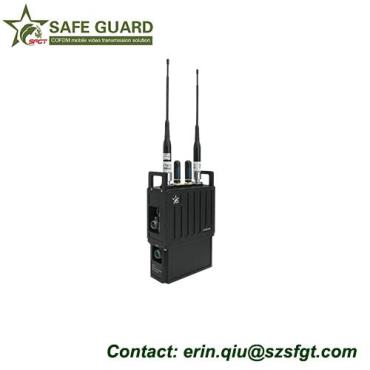

Tactical Military Robust Wireless Mobile IP MESH Radio

1. Support Non-line-of- sight mobile or stationary communication

2. Frequency can be customized at rang of 300~3000MHz

3. Can be mesh, star, chained or hybrid network deployment

4. Networking capability up to 32 nodes

5. Self-encrypting security algorithm

6. Optional embedded H.265 video encoder

7. Support HDMI, HD-SDI, BNC options

8. Optional built-in WIFI module to connection to mobile devices and computers

9. Small and light, to be used by personal with integrated batteries

10. Provides real-time monitoring, remote configuration function

Military grade machine design, lightweight, for portable. Shell-case of metal material, military level designed and lightweight to take full consider of heat dissipation, security, harsh working conditions and other factors, and easy for deployment and operation.

USB port;USB *1

Frequency;300-3000MHz

GPS;Support

RF bandwidth;5/10/20MHz

WIFI module;Support

RF output power;1~2Watt

Encryption;AES

Modulation;COFDM

Modulation constellation;BPSK/QPSK/16QAM/64QAM

Working voltage;DC12V

FEC;1/2,2/3,3/4,5/6

Working current;≤2A

Sensitivity;-93dbm@5MHz

Power consumption;≤20W

MESH throughput;Peak 70Mbps@20MHz

Cover distance;Customized

RF MIMO port;TNC *2

Networking capability;Up to 32 nodes

WIFI antenna port;SMA *1

GPS antenna port;SMA *1

Video input format;IP video input:1080P IP Camera

Physical characteristics;Optional HDMI, HD-SDI, BNC

Protection grade;IP65

Audio input format;MIC

Working temperature;-20℃~+50℃

Audio output format;Headphone

Storage temperature;-40℃~+80℃

Video compress format;H.264

Ethernet port;RJ45*2
