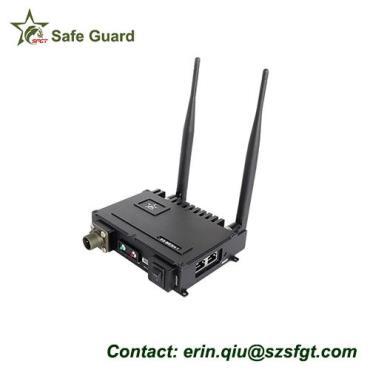

This SG-MESH-1 is a new robust broadband Ethernet wireless transceiver radio. It’s a fullly connected self-managing and self-healing network, which is good for long range N-LOS (Non line of sight) wireless IP communication. It provides complete bi-directional encryption (256bits) network video, voice, and data transmission channel, also have bridge mode and Route mode. It can support wireless Ad-Hoc Network that user can use it for mobile IP MESH communication.

As its rugged compact design, and mesh network ability, it’s widely used in army, security and protection, fire control, emergency areas etc.

Main Features of wireless products mesh communications mobile security system

For long range wireless video, voice, data transmission;

Support wireless MESH network;

Transmission rate can be up to 96Mbps;

Support non line of sight (NLOS ) mobile transmission;

Good diffraction and anti-interference;

High security with encryption 256 bits;

Small dimension, light weight, easy to carry, heat dissipation of aluminum case;

Highly integrated modular combination design;

2 Ethernet interfaces for two IP cameras;

Software configured

Frequency;700/1400 MHz (other frequency can be customized)

Bandwidth;5M/10M/20M/40MHz (Adjustable)

RF power;30dBm (33dBm/36dBm Optional)

Sensitivity;-102dBm maximal

Modulation;DSSS/CCK BPSK/QPSK OFDM BPSK/QPSK//16-QAM/64-QAM

Working voltage;7-48V

Power consumption;~ 5W

Working temperature;-40℃~ +65℃

RF interface;SMA * 2

Ethernet port;RJ45 * 2

Operation;Web Software

Dimension;131*103*29mm

Weight;460g
