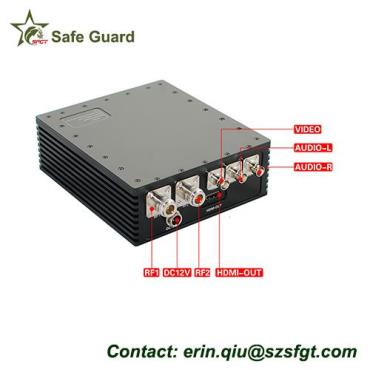

SG-HR50 is a vehicle-mounted high-definition H.264 COFDM wireless video audio receiver,

standard 1.5U rack designed, simple and efficient to use control panel. Support output video

(including HD and SD resolution) audio signal simultaneously.It has the strong anti-jamming

capacity,overcomes the reflection and cover caused by transmission multipath simulation

technique and conventional modulation techniques,to realize high-speed photography and

real-time receive high quality image in NLOS(Non-Line-of Sight) or complicated working

environment.Easy to place it in Vehicle and room for checking video.

Features of hd video transmission portable av receiver

* H.264/MPEG-4 video compression

* Support both HD 1080P and 720P SD resolution

* Working well in Non-line of sight (NLOS) high-speed mobile transmission

* Digital display panel operation and simple operation

* Small size, convenient for deploy mission outside

Parameters of hd video transmission portable av receiver

Receiver model;SG-DR2000

Operation voltage;12VDC

Operation current;900mA

Modulation;COFDM 2K

Frequency;customized

RF bandwidth;2/2.5/4/8MHz

Encryption;AES128/256bits

Video decoding;H.264/MPEG-4 d

Video output;BNC, HDMI

Video resolution; 1920*1080 60i/59i

Audio output; BNC, Stereo L/R audio channel

Operation temperature;-25℃~55℃

Storage Temperature; -40℃~70℃

Size;180*150*60mm

Weight;1.88kg
