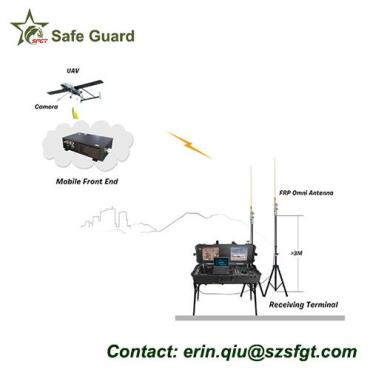

Introduction of long flight time UAV wireless ground control station:

Such a new design of COFDM wireless microwave AV data trasmission system is special for UAV/drone long flight time surveillance ground control.

Long flight time UAV wireless ground control station adopts robust Pelican outer case, and ultrabright 17" Samsung LCD screen, which performs well in outside and daytime. With the latest COFDM chip modulation, long flight time UAV wireless ground control station has the advantages of stable and robust signal receiving, and supporting mobility receive under high speed moving condition.

Designed with camera control joystick, long flight time UAV wireless ground control station is easy to control the analog/digital/thermal camera on UAV. Designed with flight control joystick, long flight time UAV wireless ground control station is easy for operator to control the UAV flying.

Receiver features of long flight time UAV wireless ground control station:

1. COFDM modulation

2. H.264 video compression

3. Full hd resolution,very sharp image

4. Modular design and highly integrated

5. Support 1 channel av signals receiving at the same time.

6. Dual aerial designed for better signal receive

7. Built in with DVR.Standard 17inch Samsung LCD screen

8. The middle space for PC place easy to carry together with the RX

9. Internal with 120G SSD memory

10. Can control operation system by using external mouse.

11. Work well under fast moving signal receiving and support NLOS trasnsmission

12. If add ethernet output that can support remote control,dynamic IP and can realize IE browsing.

13. Extra USB insert easy to copy the video.

14. With camera control joystick

15. With flight control joystick

Pelican case features:

1. Watertight, crushproof, and dust proof

2. Easy open Double Throw latches

3. Open cell core with solid wall design - strong, light weight

4. Automatic Pressure Equalization Valve

5. Comfortable rubber over-molded handle

6. Stainless steel hardware and padlock protectors

7. 2 level Pick N Pluck™ with convoluted lid foam

8. Personalized nameplate service available

Specification of long flight time UAV wireless ground control station

Video frequency ;300-4400MHz (option), 100MHz space max

Data frequency;configured

RF bandwidth;2/2.5/4/8MHz(adjustable)

Memory;embedded DVR, standard 80G SSD

LCD monitor;17inch Samsung LCD screen

RF Level Input;-105dBm~-20dBm

RF Interface;N(F)

Camera control data output;RS485

Flight control data output;RS232

Video output;BNC/HDMI

USB output;For external memory use

Modulation ;COFDM

Power supply;AC220V / DC12V

Constellation;QPSK,16QAM,

FEC;1/2,2/3,3/4,5/6,7/8

Guard Interval;1/32,1/16,1/8,1/4

Video format;1 line PAL/NTSC video signal

Video Decoding;H.264

Resolution ;1920*1080 @60i/59i

Audio Output;stereo left and right channel

Data encryption ;AES 128bits

Operating environment -30~70° C

Built in Battery;30000mA

Size;927*355*152mm

Weight;aprx. 23kg
