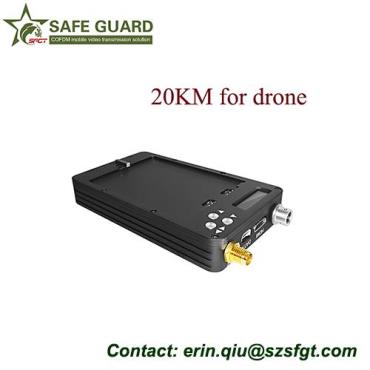

Features of 1.2g drone receiver and transmitter with whip antenna

* COFDM modulation, Stable transmission

H.264 video compression, DVD video quality;

* Modular design and highly integrated

* NTSC/PAL automatically adapt ,support user adjustable;

* Supports high-speed mobile NLOS ( Non Light Of Sight ) transmission;

* Lithium battery for power supply (continuous working time is 1 hour max)

* Adjustable working frequency, bandwidth,RF power and etc.

*Transmission security by encryption of AES 128 bits

* 133g net weight (without battery), portable for UAV applications.

* Matched with multifunction amplifier for longer range requirement.

Modulation; COFDM

Power supply; DC7.5-12V/ 0.9A-13A

Frequency; 300-2200MHz (optional)

Bandwidth; 2/2.5/4/8M (adjustable)

Power Output; 1Watt

AV Interface

2.5mm jack for camera (CVBS)

3.5mm jack for AV (CVBS)

Encryption; AES 128 bits

Constellation; QPSK,16QAM

FEC; 1/2,2/3,3/4,5/6, 7/8

Guard Interval; 1/32,1/16,1/8,1/4

Flatness; ≤2dB (within full frequency range) , ≤0.5dB (within 8MHz)

Carrier; 2K

CNR ≥-30dB @ 30dBm power output

SHG; >52dBc

CBER; <2.0E-4

Video Signal; 1Vp-p@75Ω,NTSC/PAL analog adaptive

Video Compression; H.264

Resolution Standard 720P

RF Interface; SMA (type)

Video Format; PAL/NTSC(self-adaption)

Battery working time; 1hour

OperatingTemperature; -25℃~55℃

Storage Temperature; -40℃~70℃

Transmission Distance;

20km LOS/NLOS distance (for air to ground) if over 300m high

300m NLOS distance (for body worn)

Size; 100*60*16mm

Weight; 133g(without battery); 226g(with battery)
