Summarize

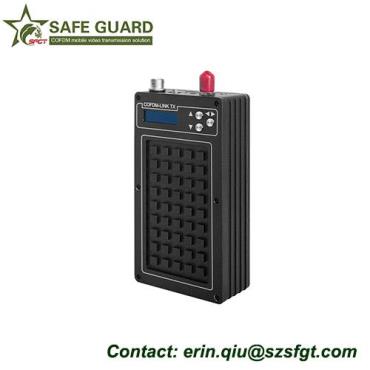

EOD Firefight Robot Live Video Safety Wireless Monitor(SG-HD153) is an exclusive design Mini H.264 HD wireless video transmitter with the 4th generation mobile communication core COFDM multi-carrier modulation technology,and high efficiency innovative H.264 compression code.

EOD Firefight Robot Live Video Safety Wireless Monitor(SG-HD153) has strong light, low power consumption of OLED display control panel, integrated digital modulation, audio and video compression in combo. remote control aviation cofdm transmitter SG-HD153 is suitable for mobile image, HD video, and it perform well in NLOS digital video transmission.

EOD Firefight Robot Live Video Safety Wireless Monitor(SG-HD153) is not only small& light, but also has a good performance.For example, it can transmit high quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting.

EOD Firefight Robot Live Video Safety Wireless Monitor(SG-HD153) is widely used in UAV aviation filming,military,covert investigation,image monitor and real-time wireless video transmission.

Feature

1080P/1080I full HD transmitter

small and light

safe and reliable

well permance :NLOS/LOS distance: 500m-1km/20km-50km

prompt transmission:Only 150ms delay for whole system working

New exclusive design product with COFDM

easy to carry and hide

HDMI+SDI+AV audio vdeo interface

Item name;EOD Firefight Robot Live Video Safety Wireless Monitor

Voltage;DC12V/960mA

Current;960mA

AV Input;CVBS/AV:3.5mm port,connect to standard resolution analog video signal;

HD-SDI/HDMI:supportHD1080P,720P,576,480; with audio demultiplexing function

Battery working time;1 hour

Frequency;300-4400MHz(option)

Bandwidth;2/2.5/4/8MHz(adjustable)

Output power 1.5Watt

Data encryption;AES128/256bits

Modulation;COFDM, 2k, qpsk

Constellation;QPSK,16QAM

Carrier;2K,8K

Flatness;Full band≤2dB,8MHz≤0.5dB

FEC;1/2 2/3 3/4 7/8

Guard Interval;1/32 1/16 1/8 1/4

Video compression;H.264

Image resolution;HD1080i/P(1920*1080), compatibility 1080I,720P,480P and standard resolution

Parameter control method;Set up the related parameters through the control panel

Input range (mV);800±80

RF Interface;SMA

Video formats;PAL/NTSC(self-adaption)

Working temperature;-20~+75 degree centigrade

Dimension;110*58*27mm

Weight;302g
