Features of Military Video Radio Communication Wireless Repeater

1. NLOS RF transmission stable audio video COFDM 10km wireless transmitter and receiver

2. DVD video quality Strong casing with built-in two cooling fans

3. Mobile and NLOS transmission

4. Great security by encryption of AES 128/256 bits

5. Low system latency

6. Modular design, compact structure

7.OEM design Customizable & additional features

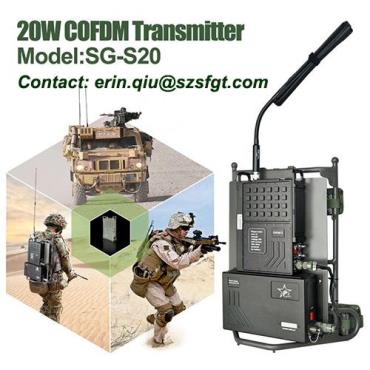

Item Name;Military Video Radio Communication Wireless transmitter

Model No.;SG-S20

Modulation;CODFM

DC input;DC12V-DC14V

Working Current;≤4.7A@DC12V

Constellation;QPSK,16QAM (optional)

FEC;1/2,2/3,3/4,5/6,7/8 (optional)

Carrier;2K

Guard Interval;1/32,1/16,1/8,1/4 (optional)

Frequency;138-4400MHz (available)/td>

RF power output;15W

A/V interface;RCA/BNC

RF interface;N type

Flatness;≤2dB(within full frequency range), ≤0.5dB(within 8MHz)

Video Harmonic;1Vp-p @ 75Ω, NTSC/PAL adaptive

CBER;<2.0E-4

Video Compression;MPEG-4/H.264

Resolution;1280*720

Casing Protection;IP66 (dustproof, rainproof)

Work environment;-30~70 degree centigrade

Dimension;220*140*60MM

Weight;2.3kg

Delivery;1-3 working days delivery time

Free warranty;12 months for device; 3 months for parts
