Ground Control Systems and Equipment for UAV/UGV/Robotics Introduction

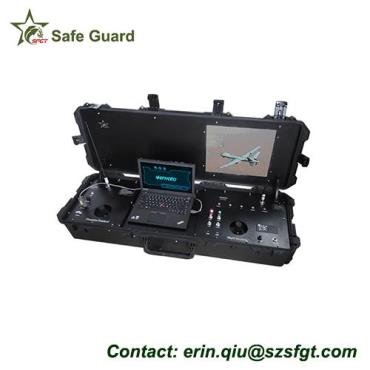

Ground Control Systems and Equipment for UAV/UGV/Robotics HR103 is capable to receive single channel and showing on the LCD Screen. Built in 17inch LCD and 1 channel DVR with up to 120GB SSD, H.264 compression technology. Operating with DC12/AC22V power supply. As it insert with battery built in that support 7-8hrs endurance working time.

Safe Guard UAV Solutions Ground Control System Sepecification

Product Name; Ground Control Systems and Equipment for UAV/UGV/Robotics

Frequency/Video;650MHz

Power Supply;AC220V/DC12V

RF Bandwidth;2/2.5 MHz

Constellation;QPSK,16QAM

LCD Monitor;17 Inch Samsung LCD Screen

FEC;1/2,2/3,3/4,5/6,7/8

Storage Method;SSD

Guard Interval;1/32,1/16/,1/8,1/4

RF Level Input;-105dbm/2MHz,-95dbm/4/8MHz

Video Decoding;H.264

RF Interface;N(F)

Resolution;1920*1080,720,576,480;

AV Output;BNC

Audio Output;Stereo left and right channel

Data Serial Port;RS232@19200bps

Data encryption;AES 128bits

Work Environment;-30~70℃

Data Frequency;470MHz(RS485)

Built in Battery;20A capacity, can support 4-5hrs working time

USB Output;For mouse connection and hard disk back-up files

Size;1198*419*234mm

Modulation;COFDM

Weight;23KG
