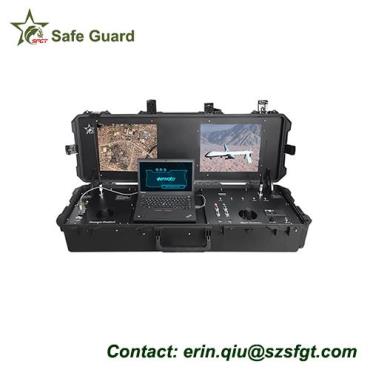

MPEG-4/H.264 video compression

Full hd resolution, very sharp image

Modular design and highly integrated

Support 1 channel av signals receiving at the same time.

Dual aerial designed for better signal receiving transmitter signal

Built in with DVR.Standard 17inch Samsung LCD screen

The left space for PC place easy to carry together with the RX

Internal with 80G / 1TB SSD memory

Can control operation system by using external mouse.

Work well under fast moving signal receiving and support NLOS transmission

If add ethernet output that can support remote control,dynamic IP and can realize IE browsing.

Extra USB insert easy to copy the video.

COFDM Technique Advantages

Strong interference:COFDM wireless transmitter is effectively against the multipath interference of signal waveform with the COFDM modulation. When the frequency selective fading occurs due to multipath transmission in the channel, only the subcarriers in the band depression and the signal carried by them are affected. The other subcarriers are not affected. Therefore, the overall bit error rate of the system is lower.

Anti-multipath fading: COFDM wireless audio video transmitter is effectively against the interference with the multi-carrier technique (COFDM). Compared to the single carrier, multi-carrier inherently resistant to time delay and has strong multipath capability. With joint coding of subcarriers & frequency diversity of the channel, the system’s performance is improved. Therefore, COFDM wireless system is suitable for multi-path environment and fading channel high-speed audio video data transmission.

Product Name;COFDM long range audio video data transmission wireless communication system

Frequency;138-4400MHz (option),100MHz frequency range for user''''''''s option

RF bandwidth;2/2.5/4/8MHz(adjustable)

Memory;embedded DVR, standard 80G SSD

LCD monitor;17inch LCD screen

RF Level Input; -105dBm~-20dBm

RF Interface;N(F)

AV output;BNC

Data output;RS485/RS232/RS422

HD output;HDMI/HD-SDI

USB output;For external memory use

Modulation;COFDM

Power supply;AC220V / DC12V

Constellation;QPSK,16QAM,

FEC;1/2,2/3,3/4,5/6,7/8

Guard Interval;1/32,1/16,1/8,1/4

Video format;1 line PAL/NTSC video signal

Video Decoding;MPEG-4MP@ML

Resolution;1920*1080 @60i/59i

Audio Output;stereo left and right channel

Data encryption;AES 128bits

Work environment;-30~70° C

Built in Battery;30000mA, support 48 hours continuously recording

Size;927*355*152mm

Weight;23kg
