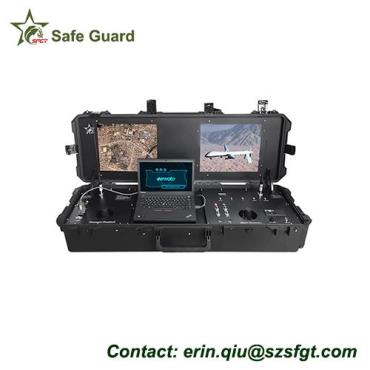

Safe Guard UAV ground station SG-SRT01 is a solution for controlling unmanned vehicles and payloads.

It can be configured to control unmanned aircraft vehicles (UAV), ground robots, bomb disposal robots, firefighting robots and other remote unmanned devices. SG-SRT01 is housed in a military grade rugged PELICAN case which makes it ideal for use in harsh environments.

Main features:

COFDM modulation

H.264 video compression

Full HD resolution,very sharp image

Dual aerial designed for better signal receive

Built in with DVR. Standard 17inch Samsung LCD screen

Internal with 120G SSD memory

Work well under fast moving signal receiving and support NLOS trasnsmission

If add ethernet output that can support remote control,dynamic IP and can realize IE browsing.

Extra USB insert easy to copy the video.

With camera control and flight control joystick.

Video frequency ; Customizable in 300-4400MHz

Data frequency; Configured

RF bandwidth;2/2.5/4/8MHz(adjustable)

Memory;Embedded DVR, standard 120G SSD (Customizable)

LCD monitor;17inch Samsung LCD screen

RF Level Input;-105dBm~-20dBm

RF Interface; N(F)

Camera control data output;RS485

Flight control data output;RS232

Video output; Analog BNC, HDMI

USB output;For external memory use

Modulation ;COFDM

Power supply; AC220V / DC12V

Constellation; QPSK,16QAM,

FEC;1/2,2/3,3/4,5/6,7/8

Guard Interval; 1/32,1/16,1/8,1/4

Video format; 1 line PAL/NTSC video signal

Video Decoding;H.264

Resolution;1920*1080 @60i/59i

Audio Output; stereo left and right channel

Data encryption; AES 128bits

Operating environment;-30~70° C

Built in Battery;30000mA, support 48 hours continuously recording

Size;927*355*152mm

Weight;APRX. 23kg
