MPEG-4/H.264 video compression

Full hd resolution, very sharp image

Modular design and highly integrated

Support 1 channel av signals receiving at the same time.

Dual aerial designed for better signal receive

Built in with DVR.Standard 17inch Samsung LCD screen

The left space for PC place easy to carry together with the RX

Internal with 128G / 1TB SSD memory

Can control operation system by using external mouse.

Work well under fast moving signal receiving and support NLOS transmission

If add ethernet output that can support remote control,dynamic IP and can realize IE browsing.

Extra USB insert easy to copy the video.

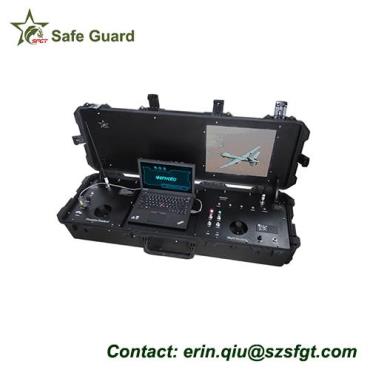

Product Name;Drone With 100km Remote Control Station

Frequency;138-4400MHz (option),100MHz frequency range for user''''''''s option

RF bandwidth;2/2.5/4/8MHz(adjustable)

Memory;embedded DVR, standard 80G SSD

LCD monitor;17inch Samsung LCD screen

RF Level Input; -105dBm~-20dBm

RF Interface;N(F)

AV output;BNC

Data output;RS485/RS232/RS422

HD output;HDMI/HD-SDI

USB output;For external memory use

Modulation;COFDM

Power supply;AC220V / DC12V

Constellation;QPSK,16QAM,

FEC;1/2,2/3,3/4,5/6,7/8

Guard Interval;1/32,1/16,1/8,1/4

Video format;1 line PAL/NTSC video signal

Video Decoding; ISO/IEC13818-2 MPEG-4MP@ML

Resolution;1920*1080 @60i/59i

Audio Output;stereo left and right channel

Data encryption;AES 128bits

Work environment;-30~70° C

Built in Battery;30000mA, support 48 hours continuously recording

Size;927*355*152mm

Weight;23kg
