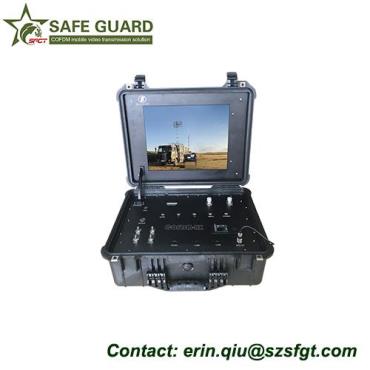

long distance video ground station control station for uav

Receiver features of long distance video ground station control station for uav

COFDM modulation

H.264 video compression

Full hd resolution,very sharp image

Modular design and highly integrated

Signal channel video recording and mornitoring

Dual aerial designed for better signal receive

Built in with DVR.Standard 17inch or 15inch Samsung LCD screen

Internal with 120G SSD memory

Can control operation system by using external mouse.

If add RJ-45 ethernet output that can support remote control,dynamic IP and can realize IE browsing.

Additional option features:RS485/232/422 data serial output, HD interface,USB plug, Ethernet output and etc..

Tech specifications of long distance video ground station control station for uav

Frequency:300-4400MHz (option)

RF bandwidth:2/2.5/4/8MHz(adjustable)

Memory embedded DVR, standard 120G SSD

LCD monitor:17inch Samsung LCD screen

RF Level Input:-92dBm~-20dBm / -105dBm~-20dBm

RF Interface:N(F)

AV output:BNC/RCA

Modulation:COFDM

Power supply:AC220V / DC12V

Constellation:QPSK,16QAM,64QAM(optional),QPSK/16QAM/64QAM @ 4/8MHz

Video format:1 line PAL/NTSC video signal

Video Decoding:H.264 /MPEG-4

Resolution:SD or HD (optional)

Audio Output:stereo left and right channel

Data encryption:AES 128bits

Work environment:-30~70° C

Built in Battery:20000mA

Size:525*437*213mm

Weight:18kg
