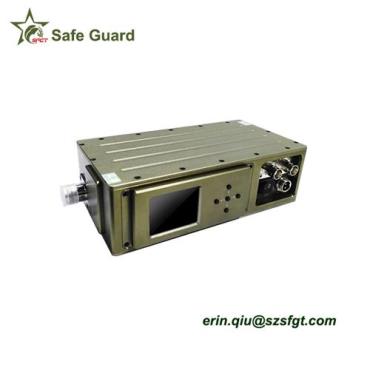

cofdm wireless video audio long range av transmitter receiver set for uav surveillance system
cofdm wireless video audio long range av transmitter receiver set for uav surveillance system
Shenzhen Safe Guard Co., Ltd
Region: China
Update: 2020/11/23
INQUIRY
Key Specifications
Frequency: 300-4400MHz (option)

RF output Power: 5Watt

Voltage: DC12V

Modulation: COFDM

Constellation: QPSK,16QAM

Bandwidth: 2/2.5/4/8MHz (adjustable)

FEC: 1/2,2/3,3/4,5/6,7/8

Guard Interval: 1/32,1/16,1/8,1/4

Video Input: 1 line PAL/NTSC analog video

Audio Input: stereo left and right channels

AV Interface: BNC

Video Compression: H.264

Type: long range 100km nlos wireless uav cofdm video transmitter

Data encryption: AES

Flatness: Full band≤2dB, 8MHz≤0.5dB

Carrier: 2K,8K

Resolution: standard 720P

RF Interface: N(F)

Video Format: PAL/NTSC(self-adaption)

Built-in battery: 2300mA, 3Hrs

Work environment: -30~70°

Distance: 2-5km max NLOS(manpack)

Over 100kms LOS distance on UAV (if over 300m altitude)

Size: 180*100*60mm

Weight: 1444g
