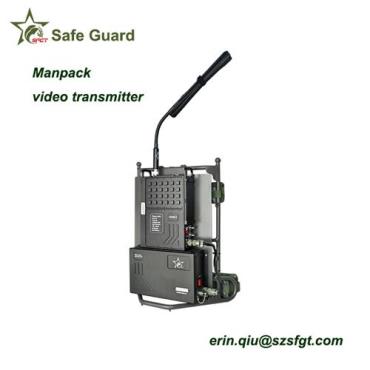

Model: SG-S20

This military backpack system is special for man-portable transmitter enter into the area of the incident to gather information and signal transmission when in the condition of heavy obstacles,such as many building barriers ,severe electromagnetic interference,remote mountain town or other harsh environments, which cause command vehicale can’t directly reach the site and forced to parked in vicinity.

At the front-end personnel, scouts, firefighters, rescue personnel or tevevision interview personnel using small size, backpack or Buckle format transmitter transmit the live signals to the rear command vehicle.

Then the command vehicle will receive the image displayed on the monitor via the receiver which convenient for real time understanding of the site condition and timely command.

Features of wireless video transmitter receiver:

>>COFDM modulation, Stable transmission

>>MPEG-4 video compression, DVD video quality

>>Military aluminum housing ,Strong casing with built-in two cooling fans

>>Mobile and NLOS(Non line-of-sight) transmission

>>Great security by encryption of AES 128 bits

>>Low system latency

>>Modular design, compact structure, OEM design

>>Several wavebands available: VHF/L/ S

>>Can be customized to add additional features,such like HDMI/HD-SDI, data port, Ehernet and etc..

Modulation: CODFM

DC input:DC12V-DC14V

Working Current: ≤4.7A@DC12V

Constellation: QPSK,16QAM,64QAM (optional)

FEC: 1/2,2/3,3/4,5/6,7/8 (optional)

Carrier:2K

Guard Interval: 1/32,1/16,1/8,1/4 (optional)

Frequency: 300-4400MHz (available)

RF power output: 15W

A/V interface: BNC

RF interface: N type

Flatness: ≤2dB(within full frequency range), ≤0.5dB(within 8MHz)

Video Harmonic: 1Vp-p @ 75Ω, NTSC/PAL adaptive

CBER: <2.0E-4

Encryption: AES128/256

Video Compression:MPEG-4/H.264

Resolution: 1280*720

Work environment: -30~70°

Dimension:220*140*60MM

Weight: 2.3kg
