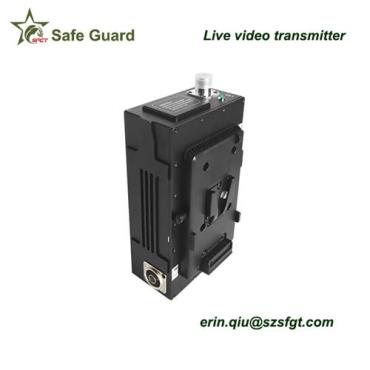

news gathering live broadcasting H.264 hdmi cofdm sdi transmitter

Model: SG-HD105

Features of for news gathering live broadcasting H.264 hdmi cofdm sdi transmitter:

# COFDM modulation technology insure the stability of signal

# HD-SDI/HDMI and BNC input

# Narrow and wide band:2/2.5/4/8MHz adjustable

# HD video,embedded audio and composite video input

# Balanced stereo audio input

# Matched with dual V battery mounts

# 1-5.5W rf power adjustable

# Special for cameraman live broadcasting

Parameters of wireless video transmitter

Power supply

Working voltage: DC11~16V

Working current:1.9A@DC12V

Video transmission

Frequency:300-900MHz,1.2G/2.4G/4.4GHz(option)

RF bandwidth: 2/2.5/4/8MHz(adjustable),4/8MHz is for HD system

RF Power output:1-5.5W (adjustable)

SHG:>52dBc

Modulation: COFDM

Encryption: AES128/256bits

Constellation: QPSK,16QAM,64QAM optional

FEC: 1/2,2/3,3/4,5/6,7/8 optional

Carrier: 2K,8K

Guard Interval: 1/32,1/16,1/8,1/4 optional

Flatness: Full band≤2dB,8MHz≤0.5dB

AV input:BNC

HD input: SDI/HDMI(option)

Max speed rate: 450km/h

Vidoe resolution: Minimum 1280*720 50i, Maximum 1920*1080 60P

Video coding: H.264

Formate: PAL/NTSC

Environment

Working Temperature:-25℃~55℃

Storage Temperature: -40℃~70℃

Appearance

Dimension: 180*65*110mm (without the dual V battery mount)

Weight:1.5kg(without the V battery mount)
