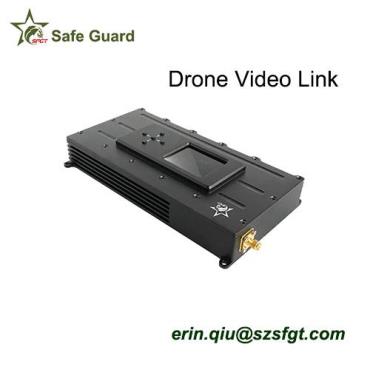

UAV UGV video digital transmission wireless hd av transmitter & receiver kit

Model: SG-HD103

UAV UGV data link wireless hd av digital transmitter & receiver kit is a powerful HD transmit system. UAV UGV data link wireless hd av digital transmitter & receiver kit uses the core of mobile communication technology COFDM(multi-carrier modulation technique). UAV UGV data link wireless hd av digital transmitter & receiver kit can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment.Support full HD 1080P H.264 encoding format and HDMI/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.

Wireless video transmitter parameters

DC Input: DC11V~DC16V

Working Current: ≤1.1A&DC12.5V

Transmitter section: Frequency:300MHz- 4000MHz(subdvided)

Modulation: COFDM

RF bandwidth:2/2.5/4/8MHz(adjustable)

Power output:1-3W(adjustable),in 1dB step

Encryption: AES128/256bits

Constellation: QPSK,16QAM,64QAM

FEC: 1/2,2/3,3/4,5/6, 7/8

Guard Interval:1/32,1/16,1/8,1/4

Carrier:2K,8K

Flatness: Full band≤2dB,8MHz≤0.5dB

AV Interface:HDMI/SDI(single selection)

CNR(weighting):≥58dB

Sloping field SNR(unweighted):≥50dB

HD interface: SDI/HDMI(single selection)

Standard :SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M

Encoding support: h.264/MPEG4

Video resolution: Maximum 1920×1080P/I@ 60P,Minimum 720×480 50i(720×576 50i )

Format:PAL/NTSC

OperatingTemperature: -25℃~55℃

Storage Temperature: -40℃~70℃

Distance:1-60km LOS distance(on air)

2km max with obstructions

1-4km for vehicle to building

Dimension:167*90*25mm

Weight:515g
