Long range COFDM digital Transmitter Wireless Video Receiver transmission for UAV helicopter SG-HDS1000A

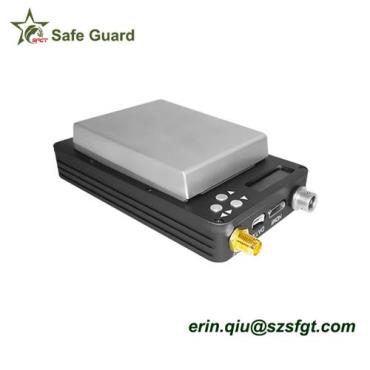

The Super Mini HD 1080P COFDM video transmission system SG-HDS1000A is our exclusive design transmitter, using the 4th generation mobile communication core COFDM multi-carrier modulation technology, and high efficiency innovative H.264 compression encoding,integrated with lightweight, low power consumption of OLED display control panel,integrating digital modulation, audio and video compression in combo,highly integrated HD moving LOS and NLOS digital video transmission equipment. Built-in with HDMI or HD-SDI hd interface. It''''''''''''''''s in small size and lightweight, which can transmit high quality full 1080P hd video and audio even though there are some building blocks or under high-speed mobile shooting. It’s widely used in UAV aviation filming,military,covert investigation,image monitor or real-time wireless video transmission and so on.

Features:

1. COFDM modulation,H.264 compression;

2. Support HD 1080P/720P resolution;

3. High performance,high capacity power of Li-battery(replaceable);

4. Small dimension,light weight,easy to carry ,heat dissipation of aluminum case;

5. Support NLOS,high-speed mobile transmission;

6. Highly integrated modular combination design;

7. Using high light and low power consumption of the OLED display control interface.

Transmitter Parameters:

Voltage: DC7.2V(7.2V/1400mA standard matching mini battery)

Current: 1A

Video Input:HDMI, AV

Frequency: 300-2400MHz(option)

Bandwidth: 2/2.5/4/8MHz(adjustable)

Output power: 30dBm(1W)

Data encryption:AES 128/ 256 Bits

Modulation: COFDM

FEC: 1/2,2/3,3/4,7/8 (optional)

Guard Interval: 1/32,1/16,1/8,1/4 (optional)

Video Compression: H.264/MPEG4

Standard Video Format: PAL/NTSC (autoadaptation)

Parameter control method: Set the related parameters through the control panel

RF Interface: SMA

Working temperature:-20~+75℃

Dimension: 100*59*22mm

Weight:133g(without battery),260g(with battery)
