It''s a big challenge to keep the CCTV system working in good condition. If your customer wants to add more cameras, the difficulty is more than the beginning. By CPS-201, you don''t need to run any new cable. Using the original cable to transmit both old camera and new camera is done.

Feature:

* Easy installation to save much cost of cable, labor and time

* Videos are excellent without interference

* One pair for 3 cameras by one cable

* Flexible application to match the locations of cameras

Specification:

Model : CPS-201

Channels : 3 Channels

Video Signal : NTSC / PAL both available

Temperature Range : 0°C~40°C

Transmitter

Video Input : 1.0Vp-p (75 Ω)

Power LED : Green LED

Power Consumption : 2.1 W

Power Requirements : DC9~12V / 170mA

Dimension : 102mm(L) x 110mm(W) x 30mm(H)

Weight : 280g

Receiver

Video Output : 1.0Vp-p ± 0.2Vp-p (75 ohm)

Power LED : Green LED

Power Consumption : 1.6 W

Power Requirements : DC9~12V / 130mA

Dimension : 102mm(L) x 110mm(W) x 30mm(H)

Weight : 275g

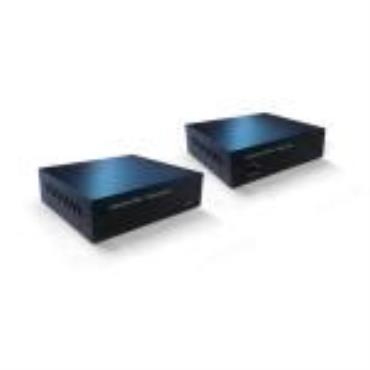

Remark: The picture shown here is engineer sample, and subject to change without notice.
