In CCTV system, the video quality is the most important. If you can''t solve all problems during transmission, even expensive headend devices are useless. CPS-200 is the guarantee to anti-noise, good isolation to avoid interference and maintain excellent Video after long-distance transmission.

Feature:

* Long distance transmission

* Excellent transmission without interference

* Easy installation

* Saving much cost of cable, labor and time

Specification:

Model : CPS-200

Channels : 2 Channels

Video Signal : NTSC / PAL both available

Temperature Range : 0°C~40°C

Transmitter

Video Input : 1.0Vp-p (75 ohm)

Power LED : Green LED

Power Consumption : 2.1 W

Power Requirements : DC9~12V / 170mA

Dimension : 102mm(L) x 110mm(W) x 30mm(H)

Weight : 275g

Receiver

Video Output : 1.0Vp-p +/- 0.2Vp-p (75 ohm)

Power LED : Green LED

Power Requirements : 1.6 W

Power Consumption : DC9~12V / 130mA

Dimension : 102mm(L) x 110mm(W) x 30mm(H)

Weight : 270g

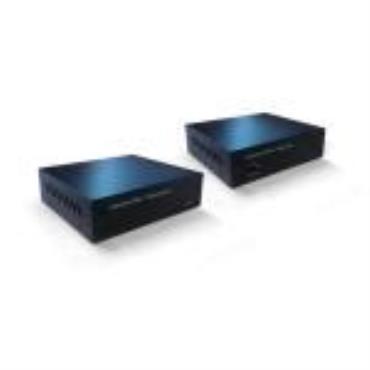

Remark: The picture shown here is engineer sample, and subject to change without notice.
