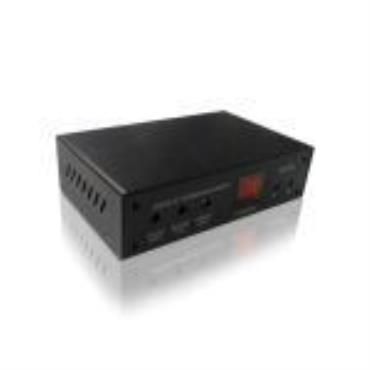

The MD-500 Agile Modulator is a DSB ( Double-Sideband ) modulator to modulate any analog A/V signal to RF ( Radio Frequency ) signal. The same concept as TV channels, one new RF signal is one new TV channel. You can combine CCTV camera, Satellite Receiver, DVD Player or any A/V device into your TV / CCTV system.

Feature:

* Push to adjust channel

* Output 100 dB value

* Channel memory after power re-supply

* Suitable for CCTV, CATV, Satellite TV

* Mounted on 19" rackmount

* Frequency range : 50 ~ 860 MHz

Specification:

Model : MD-500

Display Mode : Digital LED Channel Display

Video Signal : NTSC, PAL B/G, PAL I and PAL D/K

Video Input : 1.0Vp-p.for87.5% modulation

Audio Input : Pre-emphasis 75us

RF Output Strength : 100 +/- 5 dbuv

Connector : One audio input, one video input, one -20 db test point, one RF out, all standard F connectors

Power Requirement : DC7.5~ 12 V / 100 mA

Power Consumption : 1.5 Watts

Dimension : 118mm(L) x 86mm(W) x 32mm(H)

Weight : 265g
