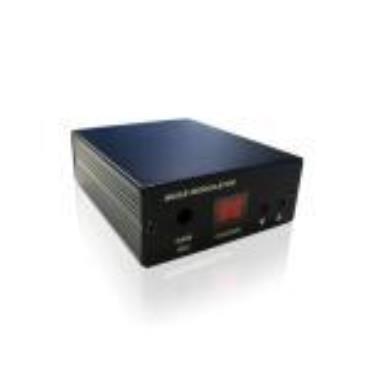

The AVM serise is a compact channel modulator that will modulate audio and video signals onto a TV channel. You can combine this new channel and distribute it throughout the home by existing coaxial cable. Just tune your TV to the channel you have chosen and you well see the source being modulated! That is right! Just view surveillance cameras, DVDs, VCRs and more from any TV by creating your own TV channels!

AVM-1499 is a TV channel Modulator specially designed for NTSC TV system on CH14-16 & CH96-99.

Feature:

* Multiple System selectable ( NTSC, PAL I, PAL B/G, PAL D/K )

* Modulate A/V signal to your selected TV channel.

* Any analog A/V device is available : DVD player, VCR, Satellite Receiver, CCTV camera.

* View video source and regular channels on the same TV.

* 90 dB signal output powerful enough for long cable runs.

* Made in Taiwan

Specification:

Model : AVM-138

Display Mode : Digital LED Channel Display

Video Signal : NTSC, PAL B/G, PAL I and PAL D/K

Video Input : 1.0Vp-p for 87.5% modulation

Audio Input : Pre-emphasis 75us.

RF output Strength : 90 +/- 5 dbuv

Channel Memory : Last channel memory

Connector : Audio input / Video input (RCA connector), RF out (F connector)

Power Requirement : DC7.5V - DC12V/100mA

Dimension : 115mm(L) x 76mm(W) x 31mm(H)

Weight : 172g
