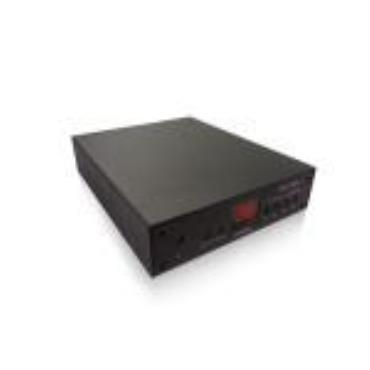

DM-100S is a professional designed Demodulator to work with modulator. Demodulate any RF signal back to A/V signal within 45~860MHz. Compact size designed to be installed on standard 19" rack mount and Power Supply series connector by Switch Power, DM-100S provides not only excellent quality but also convenient installation.

Feature:

* Push to adjust channel

* Channel memory after power re-supply

* Digital LED Channel Display

* Suitable for CCTV, CATV

* Mounted on 19" rackmount

* Frequency range : 50 ~ 860 MHz

* Improve the transmission quality without noise / interference

Specification:

Model : DM-100S, DM-100S-IR ( w/ IR remote control )

Display Mode : Digital LED Channel Display

Video Signal : NTSC, PAL B/G, PAL I and PAL D/K

Input Frequency Range : 50-860MHZ

Input Level Range : -5 ~ +30 dbmv

Video Output : 1Vp-p +/- 0.2p-p(75 ohm)

Audio Output : 0.755Vp-p +/-0.2p-p(600 ohm)

Noise Figure : 10 dB maximum

Connector : One audio input, one video input, one RF input, all standard "F" female connector

Channel Memory : Last channel memory

Power Requirement : DC 12 V / 300 mA

Power Consumption : 1.5 Watts

Dimension : 161mm(L) x 118mm(W) x 32mm(H)

Weight : 469g
