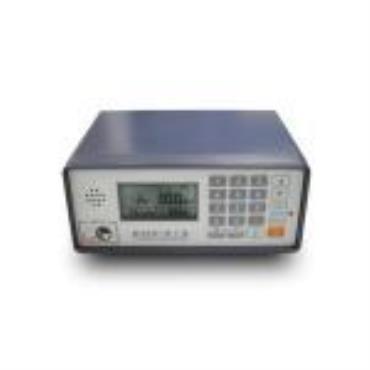

Designed for RF installers, this SMC-915 measures RF signal levels including broadcast VHF/UHF as well as standard cable channels. The EPROM/PLL synthesizer forms the basic tuning system and provides simplified operation by up/down selection. Attenuation and level scaling are automatic and display toggles video and sound carriers level. A large easy-to-read LCD shows precise signal level, the engineering unit employed and video or sound carrier status. This is augmented by a graphic display of relative signal level for antenna adjustment. Sound monitoring is provided by a speaker. Auto power-off at selectable time intervals helps to conserve battery life. An AC DVM measures cable-carried supply voltages at the input F connector.

Feature:

* TV /CATV Coverage from 46- 870MHz

* EPROM/PLL Channel Assignments for standard CATV and Broadcast

* Automatic Level Attenuation

* Easy Soft-Key Channel Selection

* Video and Audio Carrier Measurement

* Auto Power-Off to Conserve Battery Life

Specification:

Frequency Range : 46 to 870 MHz (0.05 MHz steps)

Frequency Testing : Testing by 50 kHz in steps

Built-In Channel Table : USA (corresponding to each CATV channel of STD)

Level Measurement : Broadcast Format
