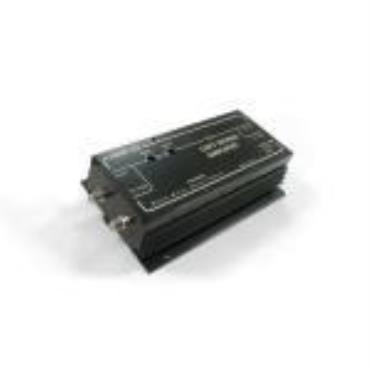

For CCTV/CATV/Digital TV systems, AMP-32 improves the quality of whole system in solving the problems of noise, interference and weakness after distribution. Providing 32 dB value with both dB output power and slope adjustment for master antenna, to prolong the transmission distance of CATV system / CCTV system / Digital TV.

Feature:

* Aluminum chassis provides excellent heat dissipation

* Hybrid module design

* Built-in Variable Gain and Slope controls

* Input Frequency: 50~860MHz

* Maximum Gain: 32db

* Input & Output Test Point: -20dB Gain / Slope Control range: 0 ~ -20db continuously adjustable

* Connector: Input / Output 75Ω impedance

* Made in Taiwan

Specification:

Model : AMP-32

Input Frequency : 50~860MHz

Maximum Gain : 32db

Input & Output Impedance : 75Ω

Input & Output Test Point : -20dB

Gain / Slope Control range : 0 ~ -20db continuously adjustable

Connector : Input / Output 75Ω impedance

Power Requirement : AC 110 ± 10% or AC 220 ± 10% VAC

Power Consumption : 10 Watts

Dimension : 200mm(L) x 120mm(W) x 52mm(H)

Weight : 1092g
