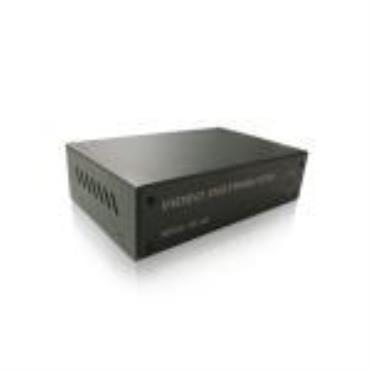

VB-104F(F connectors),VB-104B(BNC connectors),VB-104R(RCA connectors)

VB-104 is a 1 Input / 4 Output Video Distributor with built-in Video Amplifier to get all 4 Videos in excellent quality after distribution.For more than 4-output request, you can use some units to work in series.

Feature:

* Distribute one A / V input to 4 outputs without loss

* Series connection for Multi-output

* Central Power supply in series connection by switch Power Supply

* Made in Taiwan

Specification:

System : NTSC / PAL

Power Requirment : DC 12V / 100mA

Status Display : PWR LED

Dimension : 86mm(L) x 118mm(W) x 32mm(H)

Weight : 253g
