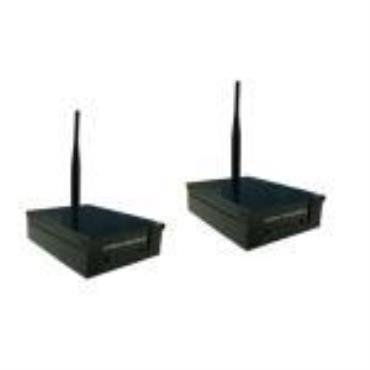

Long Distance model of 2.4GHz audio/video sender. Transmit crystal & clear video and stereo audio signal from CCTV camera / satellite TV / digital TV set top box / DVD player. Available for any AV device and keeping it without interference from other 2.4GHz band. With external & directional dipole antennas to provide an excellent transmission up to 1000 meters (clear line of sight). For longer distance, you can change to optional & powerful Antennas. Unique Frequency to avoid Interference from other 2.4GHz Band.

Feature:

* 10-Channel Selectable

* Antenna Replaceable

* Easy Installation for CCTV System

* Transmit any Audio/ Video signal

* PAL/ NTSC Available

* Unique Frequencies to Avoid Interference from other 2.4GHz Band

* Standard Output / High Power Output

* Made in Taiwan

Specification:

Model : TR-1020

Power Output : Standard 10mW / High Power 1W

Frequency Range : 2400~2483MHz

Channel Selection : PLL, Synthesizer, 10CH

Video-Audio Modulation/Demodulation Type : FM-FM

Antenna Type : SMA (F)

Power Supply : Tx: DC 12 V / 1 A Rx: DC 9 V / 300mA

Dimension : 118mm(L) x 78mm(W) x 32mm(H)

Weight : 253g
