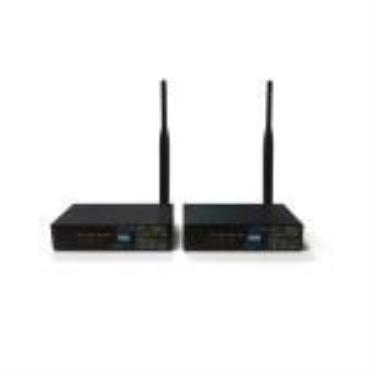

2.4GHz digital UART data control sender transmits UART485 signals which can control speed dome by connecting to PTZ control panel

Feature:

* Smart frequency hopping for 2.4GHz UART transmission

* Fix baud rate at 2400, 4800, 9600 bps

* Alarm trigger input for remote sensor / setector

* Long distance transmission

Specification:

Operation Frequency Range : 2400 ~ 2483MHz

Modulation type : GFSK

Output power : 20dBm

Power Supply : DC9V~DC12V 300mA

Operating temperature : -10C ~ +60C

Baud rate : 2400 / 4800 / 9600 bps

Antenna gain : 5dbi

Transmitter

Dimension : 124mm(L) x 69mm(W) x 30mm(H)

Weight : 265g

Receiver

Dimension : 124mm(L) x 69mm(W) x 30mm(H)

Weight : 265g
