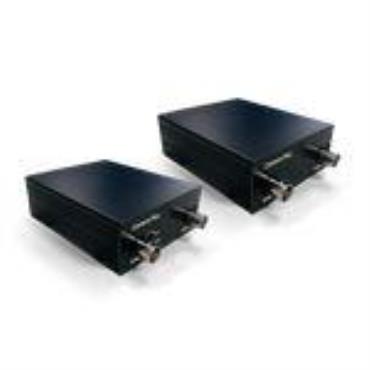

It`s a big challenge to keep the CCTV system working in good condition. If your customer wants to add more cameras, the difficulty is more than the beginning. By CPS-101, you don`t need to run any new cable. Using the original cable to transmit both old camera and new camera is done.

Feature:

* One pair for 2 cameras by one cable

* Flexible application to match the locations of cameras

* Both videos are excellent without interference

* Saving much cost of cable, labor and time

Specification:

Transmitter

Video Input : 1.0Vp-p (75 Ω)

Power LED : Red LED

Temperature Range : 0°C~40°C

Power Consumption : 0.6 W

Power Requirements : DC9~12V / 50mA

Dimension : 76mm(L) x 31mm(W) x 115mm(H)

Receiver

Video Output : 1.0Vp-p ± 0.2Vp-p (75 ohm)

Power LED : Green LED

Temperature Range : 0°C~40°C

Power Consumption : 1.6 W

Power Requirements : DC9~12V / 130mA

Dimension : 76mm(L) x 31mm(W) x 115mm(H)
