Place of Origin: Guangdong, China (Mainland) Brand Name: WALE and OEM Model Number: WL-838F Usage: Outdoor PIR Detector Detection range: max 18m Pet-immunity: below 30kgs Dimention: 128*64*40mm Quality standard: CE and ROHS Guarantee: 3 years guarantee

Packaging & Delivery

Packaging Details: white box packaging, about 0.2kgs per box

Delivery Detail: 3 to 5 working days

Specifications

1) outdoor pir detector no false trigger

2) outdoor PIR sensor with Energy Analysis Feature

3) pet immunity PIR motion sensor

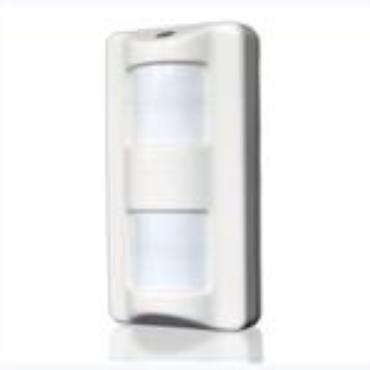

Intelligent outdoor PIR Motion Detector alarm sensor (3 yars guarantee)

Model: WL-838F

Feature:

1) IR dual-tech+MW+Energy analysis.

2) Anti-pet misstatement below 30kg, can prevent the misstatement of dogs, cats and other animals.

3) Has microprocessor controller, Adjustable microwave scope.

4) Real temperature compensation technology.

5) Adjustable dual polarity pulse count.

6) Resistance to white light & Rf interference.30V/m-1GHz.

7) Super anti-false alarm technology.

Technical Parameter:

Model WL-838F

Probe type IR dual-tech+MW+Energy analysis

Detection range 18m

Working voltage 9-16VDC

Working current 35mA

Alarm contaacts NC,12VDC,50Ma max

Tamper contact NC,12VDC,100Ma max

Alarm time 2.2s min

Preheat time 2s

PFI characteristics 30V/m at 10Mhz to 1Ghz

Working temperature minus 5°C to 55°C

Storage temperature minus 20°C to 60°C

Dimensions 128*64*40mm
