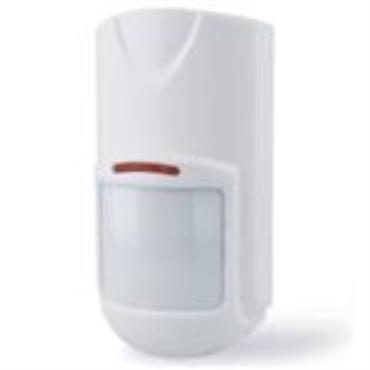

Model: VS-YH500

Microwave plus PIR Dual Technology Detection

Main Features:

Detection sensitivity adjustable, Pet-immune.

Adopts Doppler effect+spectral analysis

Using artificial intelligence technology to identify intruders and disturbance signals

Microwave adopts X-Band plane antenna

Dual temperature compensation

Dynamic threshold adjustment technique

Bipolar pulse count adjustable

Anti white light interference

Anti RF interference(20V/m-1GHz)

Fresnel lens

Alarm output NC/NO optional

Alarm time optional(3s/30s)

Design has passed patent application

SMT technology manufacture, more stable

Technical Parameters:

Operating voltage: DC9-16V

Current consumption: ≤16mA(at DC12V）

Detecting distance:12m

Detecting speed:0.3m/s-3m/s

Detecting angle:110℃

Self-testing time:45s

Alarm time: 3s/30s optional

Alarm indication: red LED

Sensor: dual pyroelectric infrared sensor

Microwave antenna type: plane antenna with high frequency oscillator GaAs :FET

Microwave frequency: 10.525GHz

Operating temperature:-10℃ ～ +50℃

Environment humidity: Maximum 95％RH（no congelation）

Installation method: Wall mounted
