HDMI Fiber Optic Converter with Duplex Audio & RS232 Data, 4K@60Hz (4:4:4), HDMI 2.0

Key Features:

Support uncompressed HDMI 2.0, HDCP 2.2, up to 18Gbps

Support 4K 60Hz (4:4:4), 4K 30Hz (4:4:4), Backward compatible

Support Bi-directional independent stereo audio with 3.5mm jack

Support 1 Duplex Rs232 serial data for control

Dual EDID modes (built-in + manual learning) with button switching

Support EDID memory retention after power-off

Support Sing-mode 10km or Multi-mode 300m

Support lossless embedded audio like Dolby TrueHD and TDS-HD

LED Status Provide Rapid Indication of Operating Parameters

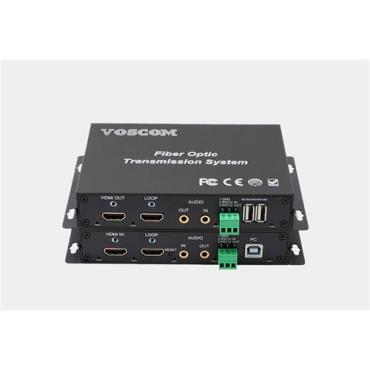

VOSCOM HDMI Fiber Optic Converter, VOS-1HDMI-ADT/R can transmit your HDMI, audio & data signal up to 10km over single-mode fiber, or up to 300 m over multi-mode fiber. requires no adjustments, equalization or de-skewing during installation. plug and play connection between Apple TV 4K, Fire TV Stick 4K, nVidia Shield TV, game console, or other professional video.

The HDMI Fiber Optic Converter support HDMI 2.0, resolution up to 4K 60Hz (4:4:4), 4K 30Hz (4:4:4), Backward compatible. EDID is managed by maintaining continuous EDID communication with the source, ensuring that it powers up properly and maintains video output. For HDMI signals with protected content, the VOS-1HDMI-ADT/R continuously authenticates HDCP compliance to support quick and reliable transmission, desinged to solve the installers common problems with long distance HDMI transmission.
