1-Channel 3G-SDI to Fiber converter with Serial Data & Ethernet

Key Features:

Multi-channel 3G-SDI transmission over one core fiber with CWDM

Support SMPTE 424M / 292M / 259M or DVB-ASI compliant

Automatic detection and re-clocking of 3G,1.5G, 270M SDI data rates

Supports embedded digital audio stream

Coax inputs are equalized(EQ), Coax outputs are with driving function (CD)

Support Single-mode fiber up to 20km

LED Status Provide Rapid Indication of Operating Parameters

No EMI or RFI and no ground loops

Stand alone or rack-mount

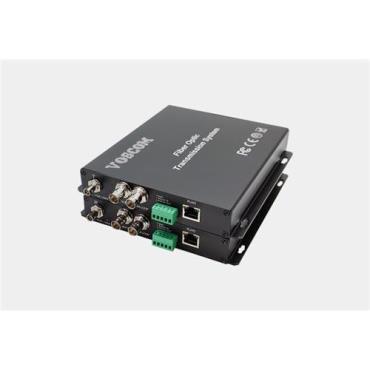

VOSCOM 3G-SDI to Fiber converter, VOS-1H3G-DET/R provides 1-Channel uncompressed 3G-SDI, data (Rs485, Rs232 or Rs422) and Ethernet. support one loop output for local display, dual outputs for two displays in the remote end.

Stand-alone or rack-mount. All 3G-SDI Fiber Optic Transceiver of VOS-1H3G-DET/R comes in an insert card version. The cards can be inserted into our 16-slot, 19inch 4U rack (VOS-CH04).
