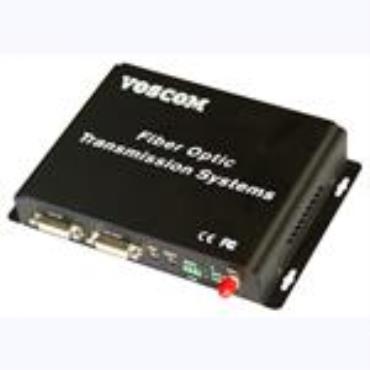

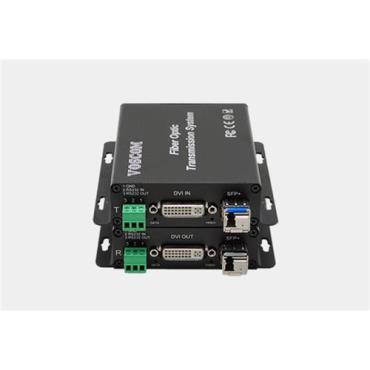

DVI Fiber Optic Extenders VOS-1DVI-LADT/R provides for the digital transmission of 1-Channel uncompressed DVI video resolutions up to WUXGA 1920x1200 and HDTV Video resolutions up to 1080p, support 1 duplex stereo audio, 1 duplex RS232 data and one DVI loopback output for local display. Ideal for specialized Media Display, Security Systems, Universities, Industrial Monitoring, Airport / Airplane / Metro / Railway applications.

Stand-alone or rack-mount. All DVI Transmission over Fiber Optics of VOS-1DVI-LADT/R come in an insert card version. The cards can be inserted into our 14-slot, 19inch 4U rack-mountable card cage (VOS-CH04).

Single-Mode or Multi-Mode, VOS-1DVI-LADT/R only can support FC/PC optical connector, the transmission distance range according to the Optical Budget. Manufacturer''s standard is: Single-mode 20km, Multi-mode 300m.

Fiber Optic DVI Features

? Extends uncompressed DVI, stereo audio, and RS-232 data over a single fiber

? Supports DVI resolutions up to WUXGA 1920x1200

? Supports HDTV video resolutions up tp 1080p

? Multimode Fiber Support for Distances up to 300m.

? Single-Mode Fiber Support for Distances up to 60 km.

? LED Status Provide Rapid Indication of Operating Parameters

? Requires no adjustments, equalization or de-skewing during installation

? No EMI or RFI and no ground loops

? Stand alone or rack-mount

? Produce according to customer''s specifications, providing OEM

Fiber Optic DVI Specifications

? Video

Number of Channels: 1-Channel DVI 1.0

Bit Rates: Up to 1.65Gb/s

Maximum resolution: WUXGA 1920x1200 or 1080P @60 Hz

Color Depth: 24-Bit

? Audio

Number of Channels: 1 Channel Duplex Stereo Analog Audio

Audio input/output impedance: 47k Ohm Unbalanced

Bandwidth: 10Hz ~ 20KHz

Bit Resolution: 24-Bit

Signal-to-Noise Ratio(SNR): > 80 dB

? Data

Data Formats: 1-Channel Duplex RS232 Data

Data Rate: DC to 115.2Kbps

Bit Error Rate: 10E-9

? Connectors

DVI Connector: DVI-D Female

Audio Connector: 3.5mm mini-jack

Data Connector: Terminal Block

Optical Connector: FC/PC only

Stand-Alone Power: Screw terminal block

Rack Power: AC line cord

? Electrical & Mechanical

Input Power Requirements: DC 5V@3A

Power Adapter: AC 100V~240V

Power Consumption: 100,000 hours

Fiber Optic DVI Ordering Information & Optical Specifications

Model Number Fiber Mode Wavelengths Optical Power Budget Maximum Transmission Distance

Transmitter Receiver

VOS-1DVI-LADMT VOS-1DVI-LADMR MM 1310nm/1550nm 16dB 300m

VOS-1DVI-LADST VOS-1DVI-LADSR SM 1310nm/1550nm 12dB 20km

Note:

? The Optical Power Budget data fit Mulit-mode(62.5/125 μm),Single-Mode(9/125 μm).

? When using 50/125 μm multimode fiber, subtract 3 dB from the optical power budget.

? Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

? Maximum transmission distance is also limited by fiber bandwidth.

? Power adapter is manufactured by third party and is supplied with fitted screw-terminal output cables.Power adapter included (for standalone) US, European, UK or Australian power plug.

? Please feel free to consult factory for any special requirement and customization.
