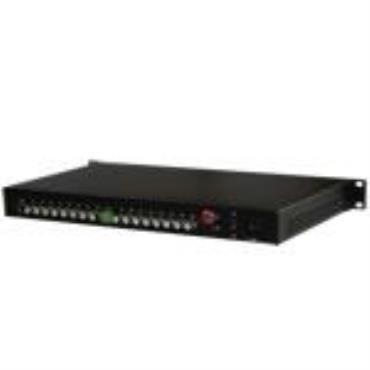

Fiber Optic Multiplexer, 16-Channel Video Multiplexer

Fiber Optic Video Multiplexer VOS-16000FT/R can transmission 16-Channel video over fiber optical cable for fixed camera, no audio,no data.

Stand-alone or rack-mount. All Fiber Optic Multiplexer units of VOS-16000FT/R come in an insert card version. The cards can be inserted into our 14-slot, 19 inch 10U rack-mountable card cage (VOS-CH10).

Single-Mode or Multi-Mode, VOS-16000FT/R can support FC or ST connector, can be used in Daisy-Chain system(Need to customize) The Transmission distance range according to the Optical Budget. Manufacturer''s standard is: Single-mode 20km.

? Support Point-to-Point or Daisy-Chain connection

? Uncompressed Digital Composite Video over one fiber

? Compatible with all PAL, NTSC,SECAM Video Systems

? Multimode Fiber Support for Distances up to 1.0 km

? Single-Mode Fiber Support for Distances up to 100 km

? LED Status Provide Rapid Indication of Operating Parameters

? No EMI or RFI and no ground loops

? Support Coarse Wavelength Division Multiplexing (CWDM)

? Stand-alone or rack-mount

? Produce according to customer''s specifications,providing OEM

? Video

Number of Channels: 16 Channels Video

Video input/output impedance: BNC 75 Ω

Video input/output Compatibility: PAL, NTSC,SECAM

Video input/output voltage: 1.0 Volt p-p

Bandwidth: 6.5MHZ

Bit Resolution: 8-Bit Digital Transmission

Differential Gain: < 1.5%

Differential Phase: < 1.5 °

Tilt: < 5%

Signal-to-Noise Ratio(SNR): > 67 dB

? Connectors

Video: 75 Ohm BNC (Gold Center Pin)

Optical: FC (standard), ST Optional

Stand-Alone Power: Screw terminal block

Rack Power: AC line cord

? Electrical & Mechanical

Input Power Requirements: DC 5V@4A

Power Adapter: AC 100V~240V (Built-in)

Power Consumption: < 10W

Stand-Alone Dimensions: 483mm × 250mm × 44.5mm (19inch 1U Rack)

Card for 10U Rack Dimensions: 430mm × 220mm × 20mm

Shipping Weight: 6.0kg (include Transmitter & Receiver)

? Environmental

Operating Temperature: -40°C ~ +75°C

Storage Temperature: -40°C ~ +85°C

Relative Humidity: 0% ~ 95% (non-condensing)

MTBF: >100,000 hours

Fiber Optic Multiplexer Ordering Information & Optical Specifications

Model Number Fiber Mode Wavelengths Optical Power Budget Maximum Transmission Distance

Transmitter Receiver

VOS-16000FMT VOS-16000FMR Multi-Mode 1310nm 10dB 1.0km

VOS-16000FST VOS-16000FSR Single-Mode 1310nm 12dB 20km

VOS-16000FST-4 VOS-16000FSR-4 Single-Mode 1310nm 18dB 40km

Note:

? The Optical Power Budget data fit Mulit-mode(62.5/125 μm),Single-Mode(9/125 μm).

? When using 50/125 μm multimode fiber, subtract 3 dB from the optical power budget.

? Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

? Maximum transmission distance is also limited by fiber bandwidth.

? Power adapter is manufactured by third party and is supplied with fitted screw-terminal output cables.Power adapter included (for standalone) US, European, UK or Australian power plug.

? Please feel free to consult factory for any special requirement and customization.

Note: Due to continuous improvement, all fiber optic transmission systems and Fiber Optic Multiplexer product specifications are subject to change without further notice.
