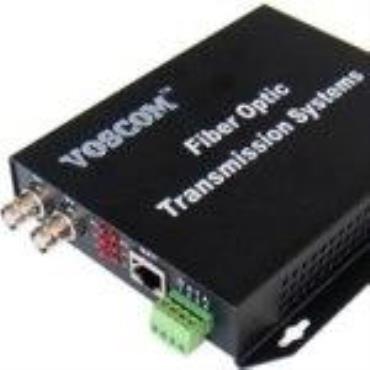

Fiber Optic Video Transmitter VOS-2000FT/R can transmission 2-Channel digital video over fiber optic cable for fixed camera, no audio, no data.

Stand-alone or rack-mount. All units of VOS-2000FT/R come in an insert card version. The cards can be inserted into our 14-slot, 19inch 4U rack-mountable card cage (VOS-CH04).

Single-Mode or Multi-Mode, VOS-2000FT/R can support FC/PC, ST/PC connector, can be used in daisy-chain system(Need to customize) The Transmission distance range according to the Optical Budget. Manufacturer''s standard is: Single-mode 20km.

? Video

Number of Channels: 2 Channels Video

Video input/output impedance: BNC 75 Ω

Video input/output Compatibility: PAL, NTSC,SECAM

Video input/output voltage: 1.0 Volt p-p

Bandwidth: 6.5MHZ

Bit Resolution: 8-Bit Digital Transmission

Differential Gain: < 1.5%

Differential Phase: < 1.5 °

Tilt: < 5%

Signal-to-Noise Ratio(SNR): > 67 dB

? Connectors

Video: 75 Ohm BNC (Gold Center Pin)

Optical: FC (standard), ST Optional

Stand-Alone Power: Screw terminal block

Rack Power: AC line cord

? Electrical & Mechanical

Input Power Requirements: DC 5V@2A

Power Adapter: AC 100V~240V

Power Consumption: < 3W

Stand-Alone Dimensions: 142mm × 107mm × 25mm

Card for 4U Rack Dimensions: 145mm × 170mm × 20mm

Shipping Weight: 1.8kg (include Transmitter & Receiver)

? Environmental

Operating Temperature: -40°C ~ +75°C

Storage Temperature: -40°C ~ +85°C

Relative Humidity: 0% ~ 95% (non-condensing)

MTBF: >100,000 hours

Ordering Information & Optical Specifications

Model Number Fiber Mode Wavelengths Optical Power Budget Maximum Transmission Distance

Transmitter Receiver

VOS-2000FMT VOS-2000FMR Multi-Mode 1310nm 16dB 2km

VOS-2000FST VOS-2000FSR Single-Mode 1310nm 12dB 20km

VOS-2000FST-4 VOS-2000FSR-4 Single-Mode 1310nm 18dB 40km

VOS-2000FST-6 VOS-2000FSR-6 Single-Mode 1550nm 25dB 60km

Note:

? The Optical Power Budget data fit Mulit-mode(62.5/125 μm),Single-Mode(9/125 μm).

? When using 50/125 μm multimode fiber, subtract 3 dB from the optical power budget.

? Fiber Optic Video transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

? Maximum transmission distance is also limited by fiber bandwidth.

? Power adapter is manufactured by third party and is supplied with fitted screw-terminal output cables.Power adapter included (for standalone) US, European, UK or Australian power plug.

? Please feel free to consult factory for any special requirement and customization.

Features

? Support Point-to-Point or Daisy-Chain connection

? Uncompressed Digital Composite Video over one fiber

? Compatible with all PAL, NTSC,SECAM Video Systems

? Multimode Fiber Support for Distances up to 2 km

? Single-Mode Fiber Support for Distances up to 100 km

? LED Status Provide Rapid Indication of Operating Parameters

? No EMI or RFI and no ground loops

? Support Coarse Wavelength Division Multiplexing (CWDM)

? Stand alone or rack-mount

? Produce according to customer''s specifications,providing OEM

Note: Due to continuous improvement, all fiber optic transmission systems product specifications are subject to change without further notice.
