‣ Support Layer 3 routing - Efficient Inter-Subnet Communication

‣ 8 x 10/100/1000 RJ45 ports – Providing reliable Gigabit Ethernet connectivity for a wide range of professional environments

‣ 4 x 100/1G/10G SFP+ uplink slots – Supporting ultra-high-speed fiber connectivity for bandwidth-intensive applications

‣ 2 x pairs Dry Contact Digital Inputs (DI), 1 x Alarm Relay Digital output (DO)

‣ Comprehensive TSN Support – Fully compliant with IEEE 802.1Qbv, 802.1Qbu, and 802.1CB for deterministic data transmission

‣ High-Precision Timing – Features IEEE 1588v2 and 802.1AS-2020 (gPTP) for accurate time synchronization across the network

‣ G.8032 & HSR/PRP Redundancy – Guaranteeing continuous network uptime and zero downtime

‣ Industrial Grade Design – Rugged IP30 aluminum housing with -40˚C~70˚C (-40°F~158°F) operating temperature

Overview

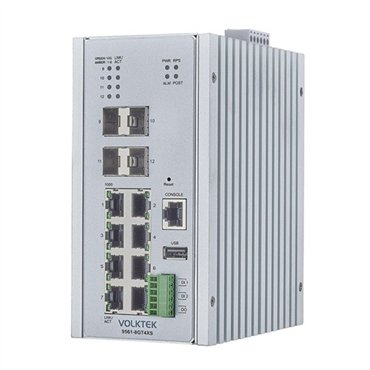

The 9561-8GT4XS-TSN industrial network switch is designed to deliver high performance and reliability in demanding industrial environments. It features a versatile interface with 8x 10/100/1000Mbps RJ45 ports and 4x 100/1G/10G SFP+ ports, ensuring robust and flexible connectivity options. The switch supports precision timing protocols such as IEEE 1588 and 802.1AS-Rev, making it ideal for applications requiring synchronized operations.

Advanced features like G.8032 and full TSN support, along with TSN Domain Protection (802.1Qci, 802.1Qav, 802.1Qbv, 802.1Qbu/802.1br), enhance network reliability and security. High traffic availability is maintained through standards like 802.1CB, IEC-62439-2 2016 MRP, and HSR/PRP, while time distribution capabilities include 802.1AS-2020 (gPTP), IEEE1588:2019, and 1PPS In/Out. Efficient power management is ensured with 802.3az (EEE) and Wake-on-LAN (WoL) capabilities.
