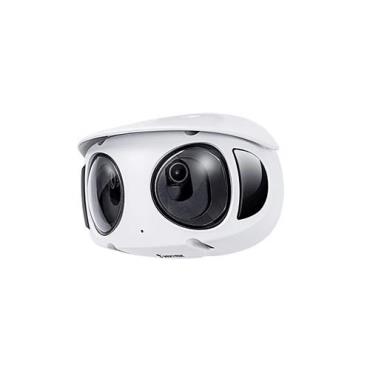

Model |
MS9390-HV |
System Information |
CPU |
Multimedia SoC (System-on-Chip) |
Flash |
128 MB |
RAM |
1GB |
Camera Features |
Image Sensor |
1/2.7" Progressive CMOS |
Maximum Resolution |
4512x1728 |
Lens Type |
Fixed-focal |
Focal Length |
f = 2.8 mm |
Aperture |
F1.2 |
Field of View |
180° (horizontal)
68° (Vertical) |
Shutter Time |
1/5 sec. to 1/32,000 sec. |
WDR Technology |
WDR Pro |
Day/Night |
Removable IR-cut filter for day & night function |
Minimum Illumination |
0.05 Lux @ F1.2 (Color)
0.01 Lux @ F1.2 (B/W)
0 Lux with IR illumination on |
Tilt Range |
20° |
Pan/tilt/zoom Functionalities |
ePTZ: 48x digital zoom
(4x on IE plug-in,12x built in) |
IR Illuminators |
Built-in IR illuminators, effective up to 20 meters with Smart IR |
On-board Storage |
Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording |
Video |
Compression |
H.265, H.264, MJPEG |
Maximum Frame Rate |
30 fps @ 4512x1728 |
Maximum Streams |
4 simultaneous streams |
S/N Ratio |
46 dB |
Dynamic Range |
91 dB |
Video Streaming |
Adjustable resolution, quality and bitrate, Configurable video cropping for bandwidth saving; Smart Stream III |
Image Settings |
Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks |
Audio |
Audio Capability |
One-way Audio |
Compression |
G.711,G.726 |
Interface |
Buit-in Microphone |
Effective Range |
5 meters |
Network |
Users |
Live viewing for up to 10 clients |
Protocols |
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, ARP, SSL, TLS, CIFS/SMB |
Interface |
10Base-T / 100BaseTX Ethernet (RJ-45)
* It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
ONVIF |
Supported, specification available at www.onvif.org |
Intelligent Video |
Video Motion Detection |
Five-window video motion detection |
Alarm and Event |
Alarm Triggers |
Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy |
Alarm Events |
Event notification using HTTP, SMTP, FTP, NAS server and MicroSD Card
File upload via HTTP, SMTP, FTP, NAS server and MicroSD card |
General |
Connectors |
RJ-45 for Network/PoE connection |
LED Indicator |
System power and status indicator |
Power Input |
IEEE 802.3at PoE Class 4 |
Power Consumption |
Max. 15.2 W |
Dimensions |
165 x 112 x 97 mm (w/o sunshield)
165 x 119 x 100 mm (w/ sunshield) |
Weight |
1,207 g |
Casing |
IP66, IK10 |
Safety Certifications |
CE, LVD, FCC Class A, VCCI, C-Tick, UL |
Operating Temperature |
Starting Temperature: -10°C ~ 50°C (14°F~ 122°F)
Working Temperature: -20°C ~ 50°C (-4°F~ 122°F) |
Humidity |
90% |
Warranty |
36 months |
System Requirements |
Operating System |
Microsoft Windows 8/7 |
Web Browser |
Internet Explorer 10/11 |
Other Players |
VLC:1.1.11 or above
Quicktime:7 or above |
Included Packaging |
Others |
Quick installation guide, warranty card, alignment sticker, desiccant bag, screw driver, screws pack, sunshield |
