Product description:

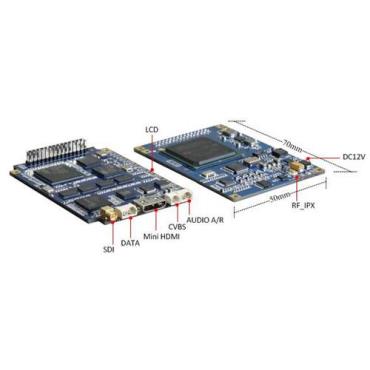

SK-530 (70mm*50mm) H.264 FHD COFDM transmitter module and SK-620(120mm*65mm)receiver module are belongs to industrial-grade miniaturization full high-definition wireless video transmission module,which support full-functional interface (SDI, HDMI, CVBS ), low latency transmission, using military-grade 128-bit dynamic AES encryption, and transparent serial data transmission can easily loading GPS data, sensor data collection, small size and low power consumption.

Using the support of non line of sight (NLOS) transmission and COFDM multi-carrier modulation technology, with low latency and high efficiency H.264 compression coding method, to improve the coding efficiency and reduce the coding delay, optimization algorithm, anti error rate and further improve the image quality,at the lowest rate to achieve the best image compression. Using advanced video pre-processing technology and efficient video coding algorithm, to provide high quality and low rate of broadcast audio and video signal transmission for high-definition digital television broadcasting system, mobile TV system, IPTV system, making it easy to manage the network expansion problems, greatly enhance the utilization of the available bandwidth, effectively save transmission costs for operators.

Application:

This product is widely used in high quality and high standard requirements of aerial photography,News, sports events, hidden investigation, video surveillance,fire fighting,real-time wireless video transmission and other applications.

Key features:

Using COFDM modulation technology,low latency with H.264 image encoding technology

Support non-line of sight (NLOS), high-speed mobile transmission

Full-functional Interface (SDI, HDMI, CVBS)

Low latency transmission

Transparent serial data transmission (9600,19200,115200)

Military-grade AES 128-bit dynamic encryption

Support multiple bandwidth output (2M / 2.5M / 4M / 8 /)

Multiple video formats full HD1080_30p / 50p / 60p / 50i / 60i, HD720_50p / 60p, SD480i /576i

Provide high-definition LCD control panel, simple and efficient user interface

Small size, low power consumption
