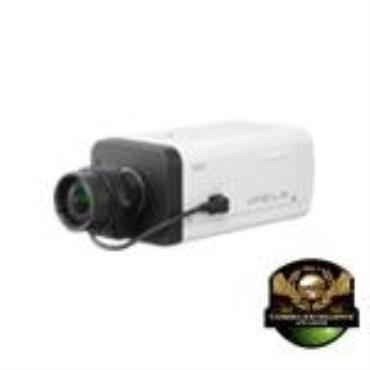

SNC-CH140
Sony Electronics Asia Pacific
Region: Singapore
Update: 2011/07/14
INQUIRY
Key Specifications
The SNC-CH140 is a dual-stream 720P HD fixed network camera utilizing state-of-the-art image enhancement with View-DR, and XDNR noise reduction. This camera supports H.264, MPEG-4, and JPEG compression formats, and delivers excellent picture quality in 720P HD resolution at 30 fps.
Incorporating the new "Exmor" CMOS image sensor from Sony, plus state-of-the-art image-enhancement technologies such as View-DR, Visibility Enhancer, and XDNR, this camera provides high-quality HD images with excellent sensitivity even under challenging lighting environments.
The SNC-CH140 can be installed quickly and easily by the newly developed Easy Focus function and Easy Zoom function. The Easy Focus function is an automatic focus function activated by a dedicated button on the camera body or the remote control, and the Easy Zoom function is an automatic focus function to adjust focus relative to the zoom ratio.
In line with Sony's commitment to open standards, the SNC-CH140 and SNC-DH140 conform to ONVIF specifications. ONVIF defines a common protocol for the exchange of information between different network video devices from different manufacturers, to allow greater interoperability in multi-vendor network video systems.
COMPANY NAME |
SONY |
CONTEST CATEGORY |
IP HD/Megapixel Camera |
PRODUCT NAME (MODEL NUMBER) |
SNC-CH140 |
IMAGE SENSOR |
1/ 3' Exmor CMOS sensor |
RECOMMEND LENS |
Megapixel 2.8-8mm f1.2IR Auto Iris (default lens) |
RESOLUTION |
IP: 1280x1024 (1.3 MP).IP: 1280x720 (720p).Analog: 600TVL(Composite Out) |
MINS. IMLUMINLATION |
Color: 0.20 Lux (50IRE, F1.2).B/W: 0.10Lux (50IRE, F1.2) |
CONTROL FUNCTION |
WDR/ATR/BLC/AWB/AGC/DNR/ABF/ePTZ |
IMAGE FRAME SPEED |
30fps 1280x1024 (1.3 MP).30fps 1280x720 (720p) |
COMPRESSION FORMAT |
H.264/ MPEG4/MJPEG |
POWER SUPPLY |
PoE, 12VDC, 24V AC |
NIGHT VISION |
IR cut filter auto/manual/off switchable |
OPTIONAL FUNCTION |
Local Storage.WiFi |
ALARM I/O |
1 alarm input and 2 output |
NETWORK PROTOCOL |
IPv4, IPv6, HTTP, HTTPS, TCP/IP, FTP, SMTP, UPnP, IGMP, RTSP/RTP/RTCP, DHCP, NTP, DNS, DNS, UDP, QoS, ARP,ICMP,SNMP(MIB-2) |
