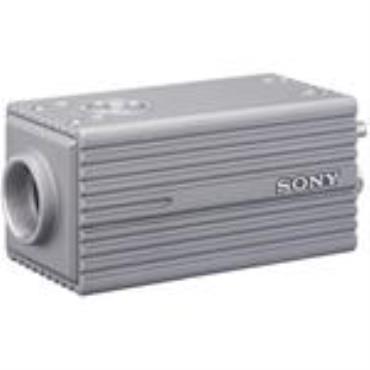

This camera is equipped with a 1/2-type high resolution (1280 x 1024) progressive scan CCD, an embedded CPU and a 10Base-T/100Base-TX interface for network connectivity.


Incorporating the high-performance and flexible AMD Geode GX533 processor with a fully customisable Windows or Linux operating system, the XCI-SX1 camera is designed to allow integrators to install a variety of image-processing software applications or to develop and apply customised applications to meet specific user needs. Unlike conventional machine vision cameras, images captured by the XCI-SX1 are processed within the camera and the processed-data is directly transmitted to a PC over a network, RS-232C link or Digital I/Os. The XCI-SX1 camera eliminates the need for conventional image-processing systems and allows for simple setup and efficient factory workflow. In today’s network-centric world, Original Equipment Manufacturers and System Integrators are constantly seeking improved video camera performance and flexibility to meet the needs of advanced imaging applications. Ruggedly constructed and offering excellent tolerance to mechanical shock and vibration, the XCI-SX1 is ideal for demanding environments, including factory inspection lines or mounting on moving machinery. Crisp, clear monochrome images captured by the advanced 1/2-type IT CCD sensor at SXGA resolution can be processed at 15 fps (34 fps at VGA resolution). Camera functions including gain control, partial scan; binning and gamma control which can also be controlled via PC.
