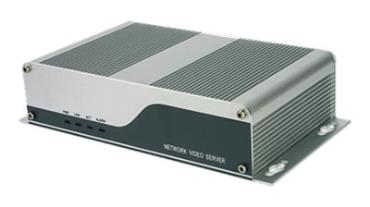

DLX series network video/audio server is a Embedded Monitor Control Equipment. Adopt advanced high-dependability special DSP scheme, combine strong performance RTOS operation system, realize technical grade MTBF indeed, optimal H.264 video compression algorithm. so the image will be more clear and more fluent. Built-in Web Server, user can long-distance control and monitor via IE browser easily, also, can realize centralized monitoring and management of various video server by center management software, it is easy for construct large Monitor Control System

Products feature

High-dependability special DSP scheme, combine strong performance RTOS operation system, realize technical grade MTBF indeed

high-definition D1 network video server, Fully compatible with HalfD1,CIF, QCIF format

Adopt optimal H.264 video compression algorithm, realized transmission high-definition image via low-network bandwidth

Adopt optimal MP3 audio compression algorithm, voice will be more clear

Adopt advanced network forward server technology, different users can access and can manage the authority of different customer

Support real time video monitor output (two channels and four channels type)

Support PAL/NTSC composite video

Built-in Web Server, remote monitoring, control, setting etc other operation by IE browser

Support 802.11b/g wireless network, support CDMA1X, GPRS mobile network and mobile telephone monitor

Support remote security update

Support dynamic IP address, support LAN, InternetADSL etc

Support Bi-direction voice real time transmission

Adopt network adaptive technique, auto-adjust video frame frequency according to bandwidth of network

Video code rate: 16Kbps~2Mbps (can smooth regulation),frame rate:1/10-30 (1/10-25) (can smooth regulation)

Possess alarm function of Video miss, detection move etc (district and sensitivity can bet set)

Possess RS485, RS232 serial ports, built-in various high speed ball and decoder protocol, support transparent protocol

Support image shield and take photo function

Auto-resume of abnormity, Auto-connect when network disconnected
