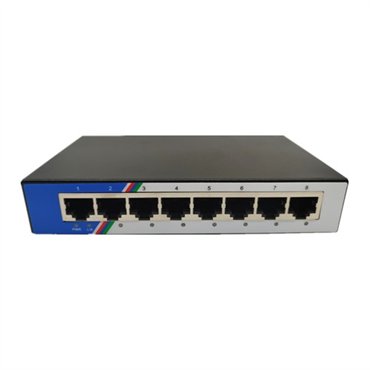

DLX-S08 series 8ports 10/100M Fast Ethernet Switch is a desktop switch specially designed for families, offices, dormitories etc. Included Eight 10/100 M auto-negotiation ports with full duplex rate up to 200Mbps bring blazing fast Internet access. Plug-and -play design makes installation easily

Application

● IP video surveillance and power supply

● High Way& Road surveillance system, Capture system

● Video-surveillance system of large factories and mines systems

● IP Network Multi-function system

● High Way & Toll Station Surveillance

● Public Security Surveillance

● Telecomcommunication System

● Intelligent traffic monitoring system

● Building talkback, Intelligent community and Smart home system

● Closed Circuit Television Surveillance

Feature

● Support 8channels conversion between 10Base-T and 100Base-TX

● Support IEEE 802.3X full duplex flow control and Backpressure half duplex flow control

● All ports support non-blocking wire speed forwarding, providing smoother transmission

● Support broadcast filtering function, automatic address learning and automatic update function, and store and forward operation mechanism

● Auto-negotiate to NIC/HUB and MDI/MDI-X

● Support plug and play, simple and convenient to use, no need set

● Indicators for Power Supply, Ethernet ports

● Metal housing,support desktop and wall mounted

Specification

Channel

8ports 10/100M

Cable type

Cat5e or above

Ethernet port

RJ45,10/100M auto-negotiation, Full-duplex/Half-duplex

Standard

IEEE 802.3,IEEE 802.3u,IEEE 802.3x Flow Control

Transmission distance

≤100 meters

MAC address

10K

Forward mode

Store and forward

Switching

Back-plane:1.6Gbps,Transfer Rate:14,880pps/14,8800pps for every Ethernet Port

Temperature

Operation:-10℃~+55℃, Storage: -40℃~+70℃

Humidity

Operation: 10%—90%, Storage: 5%—95%

Dimension

143(L) x 80(W) x 27(H)mm

Power supply

5V DC
