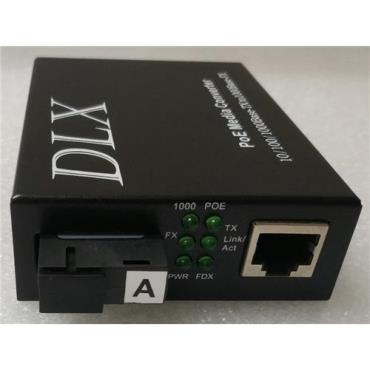

DLX-PFIS01-FG series 10/100M/1000M Ethernet Fiber Switch is included one 1000M fiber optical port and one POE 10/100M/1000M Ethernet ports. It has the function of photoelectricity switchover between 1channel 10/100M/1000M Ethernet ports and 1000M optical port. Adopts single port full-power technology, and single port supports Max.30W and feeds enough power to Array IR CCTV cameras. Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD(Powered Devices) and feeds power to it. Supports smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices. Has smart POE auto-recognized system to protect devices from overflow current and over -voltage etc. Adopts Auto-standby mode and cable distance detection management to ensure the switch has excellent energy saving capability. Using imported original industrial components and Gold-plated PCB. All RJ45 ports adopt advanced Self-healing multi-stage lightning protection design, have high-level lightning, surge and ESD protection.

APPLICATIONS

High-definition IP video surveillance and power supply

High Way& Road surveillance system, Capture system

Video-surveillance system of large factories and mines systems

IP Network Multi-function system

High Way & Toll Station Surveillance

Public Security Surveillance

Surveillance and cable TV system

Intelligent traffic monitoring system

High Quality Video Conference

Broadcast and TV program transmission

Long-distance multimedia teaching

Industrial Closed Circuit Television Surveillance

FEATURES

Adopts import industry PSE chip and Taiwan YDS transformer

Single port full-power technology, and single port supports Max.30W

Supports IEEE802.3AF and IEEE802.3AT protocol, Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD(Powered Devices) and feeds power to it

Supports smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices

Supports Auto-standby mode and cable distance detection management, if no devices been connected, then auto-standby to save energy, if cable distance less than 10meters,then will use Lower transmission power

Smart POE auto-recognized system to protect devices from overflow current and over -voltage etc.

2K MAC address

1/2/3/6 lines or 4/5/7/8 lines power supply optional, supports all PD devices

Anti-lightning and ESD protection for all Ethernet ports, power ports.

Immersion gold PCB board, Industry grade components

Multi-services Flexible Configuration on the Same Platform

Auto-negotiate to NIC/HUB and MDI/MDI-X

Support VLAN Network isolation and BSTM broadcast storm-control setting

Indicators for Power Supply, Ethernet etc.

Supports line speed switching of all ports and in 64~1536 frame length can reach line speed

Standard: Full-duplex adopts IEEE 802.3x standard, Half-duplex adopts Back pressure standard

Wall mounted installation

Transmission distance: 2km(multi-mode),20km,40km,60km,80KM,100km,120km optional(Single-mode)

SPECIFICATIONS

wavelength MM:850/1310nm, SM:1310/1550nm, DFB:1260~1610nm

Fiber power 0 dBm ~ -3 dBm/-5 dBm ~ -10 dBm

Receiving

Sensitivity

≤-26dBm

Bandwidth of Single wavelength 1.25G

Transmission distance 500M(MM),20km/40km/60km/80km/100km/120km(SM)

Max. optic Budget 15dbm/20dbm/25dbm/30dbm

Fiber connector SC

Ethernet port RJ45,10/100M/1000M auto-negotiation, Full-duplex/Half-duplex

Standard IEEE 802.3i 10BASET；IEEE 802.3u 100BASETX；IEEE 802.3x Flow Control, IEEE 802.1af DTE Power via MDI,IEEE 802.3af/at 100Base-TX/FX

Control IEE802.3X/IEE802.3Z and Full-duplex/Half-duplex

Switching Back-plane:1.0Gbps ,Transfer Rate:14,880pps/14,880pps for every Ethernet Port

Temperature Operation:-20℃~+70℃, Storage: -40℃~+80℃

Humidity Operation: 10%—90%, Storage: 5%—95%

Dimension 95(L) x 75(W) x 28(H)mm

Power supply 48V DC
