ProductIntroduction

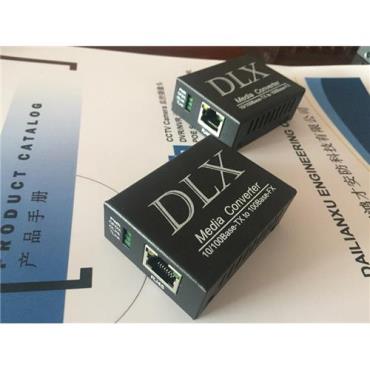

DLX-S850 Super mini series 10/100MEthernet Fiber Media Converter is a kind of media converter with the functionof photo electricity switchover between 10Base-T twisted-pair and 10Base-FLoptical cable or between 100Base-TX twisted-pair and 100Base-FX optical cable.It can extend the transmission distance of conventional 10M Ethernet or 100MFast Ethernet to 100KM via the Fast Ethernet Fiber-optical Line. It canrealize the connection between terminal and server, repeaters, hub, Exchangeror terminal easily. Realizes plug and play in the condition of without setupand drive.
Product Feature
● Capable offiltering broadcast, automatic recognizing and modifying address withstore-and-transmission operational mechanism
● Fully compatiblewith IEEEE802.3, IEEE802.3U, IEEEE802.3X, IEEE802.1d
● Supports fullduplex flow control or half duplex back pressure flow control
● Auto-negotiationfor 10/100M and the bandwidth can be up to 200Mbps(full-duplex)
● Advanced opticaland electronic integration mechanism can supports good optic characteristic andelectrical characteristic, and can ensure the high quality and excellentreliability of data transmit
● Supports remoteport management function via diagnostic and monitoring LEDs for the status ofpower, FX link/ACT, TX link/ACT
● Supply one RJ-45electrical port
● Auto-negotiateto NIC/HUB and MDI/MDI-X
● Optional power:Inner power supply or External power supply
● Average workingtime of fault free is more than 50,000hours,meet the standard of telecommunicationoperation
Technologies reference
● Operating temperature: 0℃-50℃
● Storage temperature: -40℃-70℃
● Environmenthumidity: 5-90%(non-condensing)
● Powerparameters: 5V DC (External power supply)
● Dimension:61mm(L) x 42mm(W) x 22mm(H)
