Base on IEEE newest 1901techonologu, support transmit HD video and High-speed data via coaxial and telephone wire etc. different cables. Support Long transmission distance, high transmission rate, support Multi-media and network etc.

FEATURES

1. Long distance transmission. Up to 2km if use SVY75-5 cable

2. High communication rate. if use SVY75-5 cable, when the cable length less than 400M,the TCP/IP rate is 92Mbps,when length less than 1000M the rate is 74Mbps,when length less than 2000M,the rate is 30Mbps

3. Easy to use, Plug and play.no need set IP camera etc. network device

4. High security. Support AES-128 security encryption, support manufacturer and end user match code and change communication key at site instantly

5. Using old coaxial cables, twisted-pair or telephone cables to save cost of installation and simplify network deployment, no need lay cables again

SPECIFICATIONS

Two LED indicators:

Coaxial: Indicator of Coaxial cable’s connection. when coaxial cable or twisted-pair is connected, this LED indicator is on, otherwise is off.

LAN：Indicator of Lan cable’s connection or signal transmission. When the Lan cable is connected, this LED indicator is on, when there is signal transmission, this indicator is flash.

Setting

Communication link control: this button is dip-switch, when it is on the left, it is Slave device, slide to right then it is Master device. One network link only can have one master device, but can have many Salve devices.

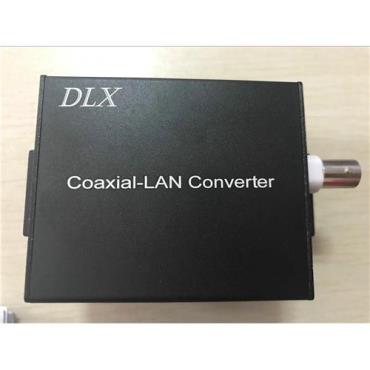

Model：DLX-CT01/02 Working temperature： -20℃~80℃

Power supply：DC12V/0.5A Relative humidity： 5%~95%，Non-Condensing

Max. Power consumption：1.6W Size：110×65×25mm(L×W×H)

Connector：RJ45*1，BNC*1(DLX-CT01)/UTP*2(DLX-CT02) Weight: 60g

Application:
