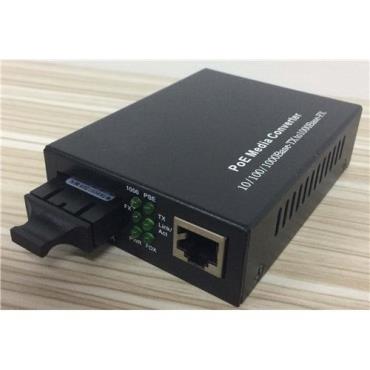

DLX-PFS01-FG series 10/100M/1000M Ethernet Fiber Switch is included one 1000M fiber optical port and one POE 10/100M/1000M Ethernet ports. It has the function of photoelectricity switchover between 1channel 10/100M/1000M Ethernet ports and 1000M optical port. Adopts single port full-power technology, and single port supports Max.30W and feeds enough power to Array IR CCTV cameras. Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD(Powered Devices) and feeds power to it. Supports smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices. Has smart POE auto-recognized system to protect devices from overflow current and over -voltage etc. Adopts Auto-standby mode and cable distance detection management to ensure the switch has excellent energy saving capability. Using imported original industrial components and Gold-plated PCB. All RJ45 ports adopt advanced Self-healing multi-stage lightning protection design, have high-level lightning, surge and ESD protection.

FEATURES

● Adopts import industry PSE chip and Taiwan YDS transformer

● Single port full-power technology, and single port supports Max.30W

● Supports IEEE802.3AF and IEEE802.3AT protocol, Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD(Powered Devices) and feeds power to it

● Supports smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices

● Supports Auto-standby mode and cable distance detection management, if no devices been connected, then auto-standby to save energy, if cable distance less than 10meters,then will use Lower transmission power

● Smart POE auto-recognized system to protect devices from overflow current and over -voltage etc.

● 2K MAC address

● 1/2/3/6 lines or 4/5/7/8 lines power supply optional, supports all PD devices

● Anti-lightning and ESD protection for all Ethernet ports, power ports.

● Auto-negotiate to NIC/HUB and MDI/MDI-X

● Transmission distance: 2km(multi-mode),20km,40km,60km,80KM,100km,120km optional(Single-mode)
